Multicore Flexible XLPE/PVC HD Cable 90°C 0.6/1kV

Multicore Flexible XLPE/PVC HD Cable 90°C 0.6/1kV

Typical Uses

In machine tools, construction and engineering equipment, conveyors and other industrial applications where outstanding flexibility is required under tough climatic and mechanical conditions. Diesel powered generator sets, load banks, ship to shore cables.
The materials used in the manufacture of these cables are RoHS Compliant.
Temperature Range: -20 to +90°C
Rated Voltage: 0.6/1kV
Relevant Standards: AS/NZS 1125, AS/NZS 3191, AS/NZS 5000.1, IEC 60332-1
Bending Radius: 5 x diameter after installing
8 x diameter during installing

Core Colour

2 core: Blue, Brown
3 core: Blue, Brown, Green/Yellow
4 core: Brown,Black, Grey, green/Yellow
5 core: Blue, Red, White, Black, Green/Yellow
7 cores & above: White cores with numbered + Green/Yellow

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

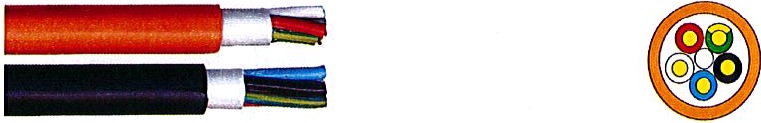

Cable Construction

  1. Conductors: Annealed bare copper standard to AS/NZS 1125 class 5 & 6.
  2. Insulation: Special flexible XLPE compound comply to AS/NZS 3808.
  3. Protective sheath: Flame retardant NBR Elastomer for outstanding flexibility and durability in most hostile environments.
  4. Inner Sheath: Flexible V90HT PVC compound comply to AS/NZS 3808, Colour White.
  5. Outer Sheath: Flexible V90HT PVC compound comply to AS/NZS 3808, colour Orange or Black

UV stabilised and flame retardant.

Technical Data

Part Number Nom. Stranding No./mm Nom. Dia. mm Nom. Insulation Thickness mm Nom. Insulation Dia. mm Layup Dia. mm Nom. Inner Sheath Thickness mm Nom. Inner Sheath Dia. mm Nom. Outer Sheath Thickness mm Nom. Overall Dia. mm
HDX03/1.0 32/0.20** 1.3 0.8 2.9 6.2 0.6 7.4 1.2 9.8
HDX04/1.0 32/0.20** 1.3 0.8 2.9 7.0 0.6 8.2 1.2 10.6
HDX05/1.0 32/0.20** 1.3 0.8 2.9 7.8 0.6 9.0 1.2 11.4
HDX02/1.5 48/0.20** 1.6 0.8 3.2 6.4 0.6 7.6 1.2 10.0
HDX03/1.5 48/0.20** 1.6 0.8 3.2 6.9 0.6 8.1 1.2 10.5
HDX04/1.5 48/0.20** 1.6 0.8 3.2 7.7 0.6 8.9 1.3 11.5
HDX05/1.5 48/0.20** 1.6 0.8 3.2 8.6 0.7 10.0 1.4 12.8
HDX07/1.5 48/0.20* 1.6 0.8 3.2 9.6 0.7 11.0 1.4 13.8
HDX12/1.5 48/0.20* 1.6 0.8 3.2 13.3 0.9 15.1 1.6 18.3
HDX02/2.5 80/0.20** 2.0 0.9 3.8 7.6 0.6 8.8 1.2 11.2
HDX03/2.5 80/0.20** 2.0 0.9 3.8 8.2 0.7 9.6 1.2 12.0
HDX04/2.5 80/0.20** 2.0 0.9 3.8 9.2 0.8 10.8 1.4 13.6
HDX05/2.5 80/0.20** 2.0 0.9 3.8 10.3 0.8 11.9 1.4 14.7
HDX07/2.5 80/0.20* 2.0 0.9 3.8 11.4 0.8 13.0 1.4 15.8
HDX03/4.0 127/0.20** 3.0 1.0 5.0 10.8 0.8 12.4 1.4 15.2
HDX04/4.0 127/0.20** 3.0 1.0 5.0 12.1 0.9 13.9 1.4 16.7
HDX05/4.0 127/0.20** 3.0 1.0 5.0 13.5 0.9 15.3 1.6 18.5
HDX03/6.0 190/0.20* 3.5 1.0 5.5 11.8 0.8 13.4 1.6 16.6
HDX04/6.0 190/0.20* 3.5 1.0 5.5 13.3 0.9 15.1 1.6 18.3
HDX05/6.0 190/0.20* 3.5 1.0 5.5 14.9 1.0 16.9 1.6 20.1
HDX03/10 318/0.20* 4.5 1.0 6.5 14.0 0.9 15.8 2.3 20.4
HDX04/10 318/0.20* 4.5 1.0 6.5 15.7 1.0 17.7 2.3 22.3
HDX05/10 318/0.2* 4.5 1.0 6.5 17.6 1.0 19.6 2.3 24.2
HDX03/16 504/0.20* 6.0 1.0 8.0 17.2 1.0 19.2 2.3 23.8
HDX04/16 504/0.20* 6.0 1.0 8.0 19.3 1.1 21.5 2.3 26.1
HDX05/16 504/0.20* 6.0 1.0 8.0 21.6 1.1 23.8 2.3 28.4
HDX03/25 817/0.20* 7.2 1.2 9.6 20.7 1.1 22.9 2.3 27.5
HDX03/35 1120/0.20* 8.4 1.2 10.8 23.3 1.2 25.7 2.3 30.3
* Compliant to AS5000.1
** Compliant to AS3191
