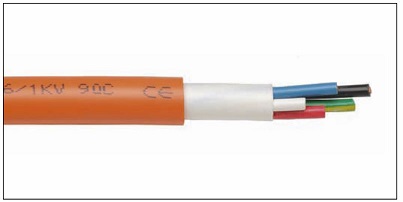

Multicore Flexible Power & Control PVC/NBR Cable OD 90°C 250/440V

Typical Uses

In machine tools, construction and engineering eqipment, conveyors and other industrial applications where outstanding flexibility is required under tough climatic and mechanical conditions. Diesel powered generator sets, load banks, ship to shore cables.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -20 to +90°C static
-20 to +90°C flexible

Maximum Conductor Temperature: 90°C

Rated Voltage: 250/440V

Relevant Standards: AS3191, AS5000.1, IEC227, IEC 60332-1, AS/NZS 1125

Bending Radius: 5 times diameter after installed
8 times diameter during install

Core Colour

2 core – Blue, Brown
3 core – Blue, Brown, Green/Yellow
4 core – Blue, Brown, Black, Green/Yellow
5 core – Red, White, Blue, Black, Green/Yellow

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Cable Construction

Conductors:
Fine Annealed Copper. Class 5.
Insulation:
special V90 PVC.
Protective sheath:
Flame retardant NBR Elastomer for outstanding flexibility and durability in most hostile environments.

UV stabilised and flame retardant.

Technical Data

Part Number	Core	Nom. Stranding No./mm	Nom. O.D. mm	Approx. Cable Weight Kg/Km
OD2/1.0OR	2 x 1.0	32/0.20	7.1	70
OD3/1.0OR	3 x 1.0	32/0.20	7.6	80
OD4/1.0OR	4 x 1.0	32/0.20	8.8	100
OD3/1.5OR	3 x 1.5	48/0.20	8.5	105
OD4/1.5OR	4 x 1.5	48/0.20	9.4	130
OD3/2.5OR	3 x 2.5	80/0.20	10.0	160
OD4/2.5OR	4 x 2.5	80/0.20	11.1	200
OD5/2.5OR	5 x 2.5	80/0.20	12.3	240
