Multicore Flexible EPR/Polyurethane Cable Zero Halogen 90°C 0.6/1kV

Multicore Flexible EPR/Polyurethane Cable Zero Halogen 90°C 0.6/1kV

Typical Uses

These cables are particularly suited for the food and wine manufacturing industries and hospital and laboratory environments. Polyurethane sheathing is microbe and hydrolysis resistant. Also suitable for the wiring of submersible pumps.

Temperature Range: -40 to +90°C static
Sheath Colour: Orange (similar to RAL 2003)
Test Voltage for 5 min. kV: 300/500V: 2000 V, 50Hz,5′
0.6/1kV: 2500 V, 50Hz,5′
Relevant Standards: IEC 60228, IEC 60332-1,AS/NZS 3808, EN 50525-2-21, VDE 0293, VDE 0282
Bending Radius: 5 times diameter after install
8 times diameter during install

Special


Warning: Trying to access array offset on false in /var/www/vhosts/cmielectrical.com.au/httpdocs/wp-content/plugins/premium-addons-for-elementor/includes/pa-display-conditions/conditions/acf-text.php on line 116

Warning: Trying to access array offset on false in /var/www/vhosts/cmielectrical.com.au/httpdocs/wp-content/plugins/premium-addons-for-elementor/includes/acf-helper.php on line 203

Warning: Trying to access array offset on false in /var/www/vhosts/cmielectrical.com.au/httpdocs/wp-content/plugins/premium-addons-for-elementor/includes/pa-display-conditions/conditions/acf-text.php on line 116

Warning: Trying to access array offset on false in /var/www/vhosts/cmielectrical.com.au/httpdocs/wp-content/plugins/premium-addons-for-elementor/includes/acf-helper.php on line 203
  • Extreme MECHANICAL RESISTANCE (abrasion-, tearing-, notch-, pressure-, and wear resistant)
  • Good CHEMICAL RESISTANCE (against fuels, oils, grease, chemicals, and sewage.)
  • Resistant against ENVIRONMENTAL FACTORS (as ozone, UV, water,…)
  • Resistant against IMPORTANT TEMPERATURE FLUCTUATIONS
  • FLAME RETARDANT, HALOGEN FREE
  • MICROBE AND HYDROLYSIS RESISTANT



The materials used in the manufacture of these cables are RoHS Compliant.

Core Colour

2 Core – Brown, Blue
3 Core – Brown, Blue, Green/Yellow
4 Core – Brown, Black, Grey, Green/Yellow
5 Core – Brown, Black, Grey, Blue, Green/Yellow
7 Core – 6 Black cores White numbered 1-6 and a Green/Yellow core

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

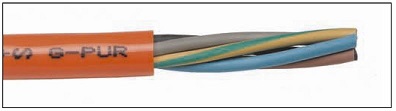

Cable Construction

  1. Copper Conductor:
    Conductors of extra fine annealed copper wired to International Standards to ensure maximum flexibility.
  2. Insulation:
    EPR compound
  3. Outer sheath:
    ZERO HALOGEN POLYURETHANE compound type TMPU

Technical Data

Part Number Size mm² Nom. Stranding No./mm Insulation Thickness mm Sheath Thickness Nom. O.D. mm Approx. Cable Weight Kg/Km
EP2/0.75OR 2 x 0.75 24/0.20 0.6 0.8 6.3 63
EP3G0.75OR 3 x 0.75 24/0.20 0.6 0.9 6.9 72
EP4G0.75OR 4 x 0.75 24/0.20 0.6 0.9 7.5 88
EP5G0.75OR 5 x 0.75 24/0.20 0.6 1.0 8.3 123
EP2/1.0OR 2 x 1.0 32/0.20 0.6 0.9 7.5 78
EP3G1.0OR 3 x 1.0 32/0.20 0.6 0.9 7.3 89
EP4G1.0OR 4 x 1.0 32/0.20 0.6 0.9 8.0 106
EP5G1.0OR 5 x 1.0 32/0.20 0.6 1.0 8.9 147
EP2G1.5OR 2 x 1.5** 30/0.25 0.8 1.0 8.4 109
EP3G1.5OR 3 x 1.5** 30/0.25 0.8 1.0 8.9 128
EP4G1.5OR 4 x 1.5** 30/0.25 0.8 1.1 9.9 158
EP5G1.5OR 5 x 1.5** 30/0.25 0.8 1.1 10.8 185
EP7G1.5OR 7 x 1.5** 30/0.25 0.8 1.2 13.7 246
EP3G2.5OR 3 x 2.5** 50/0.25 0.9 1.1 10.6 178
EP4G2.5OR 4 x 2.5** 50/0.25 0.9 1.2 11.8 212
EP5G2.5OR 5 x 2.5** 50/0.25 0.9 1.3 13.1 256
** 0.6/1kV rated
