Multicore Flexible Control PVC/NBR Cable 75°C 300/500V

Multicore Flexible Control PVC/NBR Cable 75°C 300/500V

Typical Uses

Power: Machine tools, construction and engineering equipment, conveyors, load banks or other applications requiring numbered control cables.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -20 to +75°C static, -5 to +75°C flexing
Maximum Conductor Temperature: 75°C
Rated Voltage: 300/500V
Relevant Standards: AS/NZS 1125, AS/NZS 3808, IEC 60332-1
Bending Radius: 6 times diameter after installed, 10 times diameter during install
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

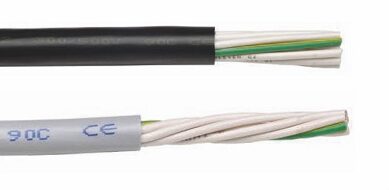

Cable Construction

  1. Conductors:
    Annealed fine wires of plain electrolytic copper stranded for high flexibility. Class 5
  2. Insulation:
    PVC Insulated V75
  3. Cores:
    White insulated with sequential black numbers, 1 green/yellow. 2 core: White core numbers, no Earth.
  4. Protective sheath:
    Flame retardant Aflex oil resistant NBR Rubber for outstanding flexibility and durability in most hostile environments.

UV stabilised and flame retardant.
NBR R75°C Sheath in grey or black.

Technical Data

Part Number Size mm² Nom. Stranding No./mm Nom. O.D. mm Approx. Cable Weight Kg/Km
CT02/0.5 2 x 0.50 16/0.20 4.9 35
CT03/0.5 3 x 0.50 16/0.20 5.2 42
CT04/0.5 4 x 0.50 16/0.20 5.6 52
CT05/0.5 5 x 0.50 16/0.20 6.1 63
CT07/0.5 7 x 0.50 16/0.20 6.9 82
CT12/0.5 12 x 0.50 16/0.20 9.1 142
CT18/0.5 18 x 0.50 16/0.20 10.6 199
CT25/0.5 25 x 0.50 16/0.20 13.0 292
CT30/0.5 30 x 0.50 16/0.20 13.6 331
CT41/0.5 41 x 0.50 16/0.20 16.6 477
CT03/0.75 3 x 0.75 24/0.20 5.6 55
CT04/0.75 4 x 0.75 24/0.20 6.1 68
CT05/0.75 5 x 0.75 24/0.20 6.9 86
CT07/0.75 *7 x 0.75 24/0.20 7.5 108
CT12/0.75 *12 x 0.75 24/0.20 9.9 189
CT18/0.75 18 x 0.75 24/0.20 11.8 272
CT25/0.75 25 x 0.75 24/0.20 14.4 396
CT02/1.0 2 x 1.0 32/0.20 5.7 53
CT03/1.0 3 x 1.0 32/0.20 6.0 66
CT04/1.0 4 x 1.0 32/0.20 6.8 85
CT05/1.0 5 x 1.0 32/0.20 7.4 102
CT07/1.0 *7 x 1.0 32/0.20 8.1 129
CT12/1.0 *12 x 1.0 32/0.20 10.7 226
CT18/1.0 18 x 1.0 32/0.20 13.0 334
CT25/1.0 25 x 1.0 32/0.20 15.8 485
CT36/1.0 36 x 1.0 32/0.20 17.9 650
CT41/1.0 41 x 1.0 32/0.20 20.4 801
CT02/1.5 2 x 1.5 48/0.20 6.9 74
CT03/1.5 3 x 1.5 48/0.20 7.3 92
CT04/1.5 4 x 1.5 48/0.20 8.0 114
CT05/1.5 5 x 1.5 48/0.20 9.0 142
CT07/1.5 *7 x 1.5 48/0.20 9.8 180
CT12/1.5 *12 x 1.5 48/0.20 13.2 322
CT18/1.5 *18 x 1.5 48/0.20 15.9 470
CT19/1.5 19 x 1.5 48/0.20 15.9 485
CT25/1.5 *25 x 1.5 48/0.20 19.5 689
CT30/1.5 30 x 1.5 48/0.20 20.2 773
CT37/1.5 *37 x 1.5 48/0.20 22.0 930
CT50/1.5 50 x 1.5 48/0.20 25.6 1300
CT04/2.5 *4 x 2.5 80/0.20 10.4 189
CT07/2.5 *7 x 2.5 80/0.20 12.9 305
CT12/2.5 *12 x 2.5 80/0.20 17.3 552
CT18/2.5 *18 x 2.5 80/0.20 21.0 805
CT27/2.5 27 x 2.5 80/0.20 25.4 1187
Colours = Black or Grey subject to availability. Normally stocked Black Sheath marked *. Standard colour Grey. Colour to be noted at end of part number.
