MULTI CORE FLEXIBLE FIRE RATED, 0.6/1KV X-HF 110

MULTI CORE FLEXIBLE FIRE RATED, 0.6/1KV X-HF 110

MICA TAPE X-HF 110 INSULATED HFS-110-TP SHEATHED CABLE TO AS/NZS 5000.1 & AS/NZS 3013
0.6/1kV MULTI FFR 110
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Cable Application

2 Hour Fire Rated extra flexible power cables. Supply for essential circuits like mains and other areas.

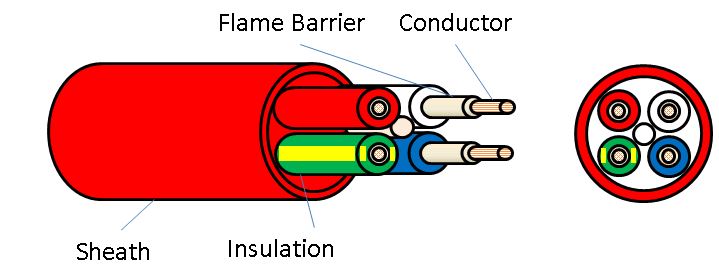

Cable Design

Conductor:

Flexible annealed bare copper conductor wire, based on IEC 60228 and AS/NZS 1125 Class 5 & 6

Insulation:

Double layered Mica tape wrap
X-HF-110 compound, complies to AS/NZS 3808
3 cores: Red, Black, Green/Yellow
4 cores: Red, White, Blue, Green/Yellow
5 cores: Red, White, Blue, Black, Green/Yellow

Outer Sheath:

HFS-110-TP compound, complies to AS/NZS 3808

Sheath Colours:

Red

Properties:

Max. Service Temperature: 110°C
Min. Service Temperature: -40°C
Max. Short Circuit Temperature: 250°C (5s)
Bending Radius: 12 x Cable diameter
Extra Flexible Conductor: Class 5 & 6
Chemical Resistance: Good
Oils Resistance: Excellent
Impact Resistance: AS/NZS 3013
Fire Resistance: 950°C/2h
Flame Retardance: AS/NZS 3013
UV Resistant
Low Smoke Zero Halogen

AS3103 WS Fire Rating:

WS52W

Characteristics

Conductor Cable
Part Number No. of Cores Nom. Area mm² Nom. Dia. mm Conductor resistance @20°C Ω/km Insulation Thickness mm Nom. Insulation Dia. mm Sheath Thickness Overall Sheath Dia. Approx. Mass Kg/100m
FFR7067C2CE 2C + E 2.5
E(2.5)		 0.25
E(0.25)		 7.98
7.98		 0.7
0.7		 4.7
4.7		 1.8 13.7 33.1
FFR7085C2CE 2C + E 4.0
E(2.5)		 0.3
E(0.25)		 4.95
7.98		 0.7
0.7		 5.3
4.7		 1.8 15.0 39.5
FFR7104C2CE 2C + E 6.0
E(2.5)		 0.3
E(0.25)		 3.3
7.98		 0.7
0.7		 5.9
4.7		 1.8 16.3 47.4
FFR7135C2CE 2C + E 10
E(4.0)		 0.3
E(0.3)		 1.91
4.95		 0.7
0.7		 7.0
5.3		 1.8 20.4 63.1
FFR7170C2CE 2C + E 16
E(6.0)		 0.3
E(0.3)		 1.21
3.3		 0.7
0.7		 8.1
5.9		 1.8 20.9 84.2
FFR19135C2CE 2C + E 25
6.0		 0.3
E(0.3)		 0.78
3.3		 0.9
0.7		 9.8
5.9		 1.8 24.5 115.8
FFR7067C3CE 3C + E 2.5
E(2.5)		 0.25
E(0.25)		 7.98
7.98		 0.7
0.7		 4.7
4.7		 1.8 14.9 39.1
FFR7085C3CE 3C + E 4.0
E(2.5)		 0.3
E(0.25)		 4.95
7.98		 0.7
0.7		 5.3
4.7		 1.8 16.4 47.1
FFR7104C3CE 3C + E 6.0
E(2.5)		 0.3
E(0.25)		 3.3
7.98		 0.7
0.7		 5.9
4.7		 1.8 17.7 57.7
FFR7135C3CE 3C + E 10
E(4.0)		 0.3
E(0.3)		 1.91
4.95		 0.7
0.7		 7.0
5.3		 1.8 20.4 77.9
FFR7170C3CE 3C + E 16
E(6.0)		 0.3
E(0.3)		 1.21
3.3		 0.7
0.7		 8.1
5.9		 1.8 22.6 105.2
FFR19135C3CE 3C + E 25
E(6.0)		 0.3
E(0.3)		 0.78
3.3		 0.9
0.7		 9.8
5.9		 1.9 26.6 146.7
FFR19153C3CE 3C + E 35
E(10)		 0.3
E(0.3)		 0.554
1.91		 0.9
0.7		 11.0
7.0		 2.0 29.4 194.6
FFR19178C3CE 3C + E 50
E(16)		 0.3
E(0.3)		 0.386
1.21		 1.0
0.7		 13.0
8.1		 2.1 35.1 268.8
FFR7067C4CE 4C + E 2.5
E(2.5)		 0.25
E(0.25)		 7.98
7.98		 0.7
0.7		 4.7
4.7		 1.8 16.2 44.6
FFR7085C4CE 4C + E 4.0
E(2.5)		 0.3
E(0.25)		 4.95
7.98		 0.7
0.7		 5.3
4.7		 1.8 17.9 54.2
FFR7104C4CE 4C + E 6.0
E(2.5)		 0.3
E(0.25)		 3.3
7.98		 0.7
0.7		 5.9
4.7		 1.8 19.5 67
FFR7135C4CE 4C + E 10
E(4.0)		 0.3
E(0.3)		 1.91
4.95		 0.7
0.7		 7.0
5.3		 1.8 22.1 91.2
FFR7170C4CE 4C + E 16
E(6.0)		 0.3
E(0.3)		 1.21
3.3		 0.7
0.7		 8.1
5.9		 1.8 25.0 124.4
FFR19135C4CE 4C + E 25
E(6.0)		 0.3
E(0.3)		 0.78
3.3		 0.9
0.7		 9.8
5.9		 1.9 29.0 176.5
FFR19153C4CE 4C + E 35
E(10)		 0.3
E(0.3)		 0.554
1.91		 0.9
0.7		 11.0
7.0		 2.1 32.1 234.7
FFR19178C4CE 4C + E 50
E(16)		 0.3
E(0.3)		 0.386
1.21		 1.0
0.7		 13.0
8.1		 2.2 37.5 324.6
FFR19214C4CE 4C + E 70
E(25)		 0.5
E(0.3)		 0.272
0.78		 1.1
0.9		 14.7
9.8		 2.4 42.2 449.1
