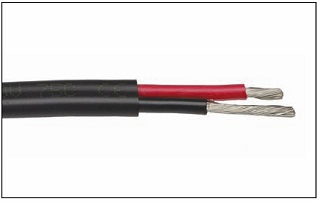

Marine Twin Flat Tinned Double Insulated PVC/PVC Cable 75°C 300/500V

Typical Uses

Marine/Boating Installations
Garden Lighting
Outdoor Speaker Installations

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -30°C to +75°C static, -20°C to +75°C flexing

Rated Voltage: 300-500V

Current Rating: As per Table 10 of AS/NZS 3008

Relevant Standards: AS/NZS 1125, IEC 60228, IEC 60332-1, AS/NZS 3808

Need help choosing the right product?

Our team is here to help.

Part Number	Size mm²	Nom. Stranding No./mm	Nom. O.D. mm	Nom. Amps 40°C Spaced
FTM 2/1.5	2 x 1.5	48/0.21	4.6 x 7.2	18
FTM 2/2.5	2 x 2.5	80/0.21	5.4 x 8.8	25
FTM 2/4.0	2 x 4.0	127/0.21	6.2 x 10.5	32
