| Certifications | |
|---|---|
| Compliance | Explosion protected to IEC60079 Series |
| Protection | Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC |
| Materials | Stainless Steel / Neoprene / Nylon |
| IP Rating | IP66/68 (7 Metres for 1 Hour) - Note: For compliance to IP68 rating, the approved sealing washer must be installed onto the entry thread |
Need help choosing the right product?
Our team is here to help.

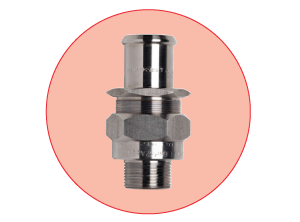

Stainless Steel cable glands for use with circular unarmoured cables to secure the cable and to provide an Explosion Protected, Weatherproof and Dust Excluding Ignition Proof entry into panels or enclosures that meet these requirements. Gland has extended tail for conduit or hose termination.
The cable glands in this range are suitable for use in machine and equipment applications where a heavy duty, corrosion resistant and Explosion Protected, unarmoured, Weatherproof gland type termination with mechanical protection is required.
| Part Number | Range Min. | Range Max. | Dia. | Across Corners | Across Flats | Max. Protrusion | Entry Thread Length | Tail Length | Tail Dia. | Pack Units | Sealing Washer | Locknut | Earth Tag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GWPMEX0SS | 3.0 | 7.1 | M20x1.5 | 25.9 | 22.3 | 49.3 | 13 | 16.7 | 15.9 | 16 | W20 | PLN20 | ET20 |
| GWPMEX1SS | 6.5 | 9.5 | M20x1.5 | 25.9 | 22.3 | 49.2 | 13 | 16.7 | 15.9 | 16 | W20 | PLN20 | ET20 |
| GWPMEX1ASS | 9.0 | 11.9 | M20x1.5 | 29.7 | 25.6 | 49.6 | 13 | 16.7 | 15.9 | 10 | W20 | PLN20 | ET20 |
| GWPMEX1BSS | 11.5 | 14.3 | M20x1.5 | 33.1 | 28.5 | 53.6 | 13 | 20.7 | 19.1 | 10 | W20 | PLN20 | ET20 |
| GWPMEX2SS | 13.5 | 17.5 | M25x1.5 | 36.1 | 33.3 | 63.4 | 13 | 27.2 | 25.4 | 5 | W25 | PLN25 | ET25 |
| GWPMEX2ASS | 17.0 | 20.1 | M25x1.5 | 40.4 | 37.2 | 64.8 | 13 | 27.2 | 25.4 | 5 | W25 | PLN25 | ET25 |
| GWPMEX3SS | 19.5 | 23.8 | M32x1.5 | 48.2 | 44.4 | 73.7 | 21 | 33.7 | 31.8 | 4 | W32 | PLN32 | ET32 |
| GWPMEX3ASS | 22.5 | 27.0 | M32x1.5 | 48.2 | 44.4 | 73.7 | 21 | 33.7 | 31.8 | 4 | W32 | PLN32 | ET32 |
| GWPMEX4SS | 26.0 | 29.4 | M40x1.5 | 61.3 | 56.5 | 81.5 | 21 | 41.5 | 38.1 | 1 | W40 | PLN40 | ET40 |
| GWPMEX4ASS | 28.5 | 32.5 | M40x1.5 | 61.3 | 56.5 | 81.5 | 21 | 41.5 | 38.1 | 1 | W40 | PLN40 | ET40 |
| GWPMEX5SS | 31.0 | 36.5 | M50x1.5 | 73.9 | 68.2 | 98.0 | 21 | 54.7 | 50.8 | 1 | W50 | PLN50 | ET50 |
| GWPMEX5ASS | 35.0 | 40.5 | M50x1.5 | 73.9 | 68.2 | 98.0 | 21 | 54.7 | 50.8 | 1 | W50 | PLN50 | ET50 |
| GWPMEX5BSS | 39.5 | 43.8 | M50x1.5 | 73.9 | 68.2 | 98.0 | 21 | 54.7 | 50.8 | 1 | W50 | PLN50 | ET50 |
| GWPMEX6SS | 42.5 | 48.4 | M63x1.5 | 87.7 | 80.9 | 113.6 | 22 | 70.2 | 63.5 | 1 | W63 | PLN63 | ET63 |
| GWPMEX6ASS | 47.0 | 52.4 | M63x1.5 | 87.7 | 80.9 | 113.6 | 22 | 70.2 | 63.5 | 1 | W63 | PLN63 | ET63 |
| GWPMEX6BSS | 51.0 | 56.0 | M63x1.5 | 87.7 | 80.9 | 113.6 | 22 | 70.2 | 63.5 | 1 | W63 | PLN63 | ET63 |
| GWPMEX7ASS | 55.0 | 59.3 | M75x1.5 | 99.7 | 92.0 | 134.8 | 24 | 91.4 | 76.2 | 1 | W75 | PLN75 | ET75 |
| GWPMEX7BSS | 58.0 | 62.6 | M75x1.5 | 99.7 | 92.0 | 134.8 | 24 | 91.4 | 76.2 | 1 | W75 | PLN75 | ET75 |
| GWPMEX7CSS | 61.0 | 65.9 | M75x1.5 | 99.7 | 92.0 | 134.8 | 24 | 91.4 | 76.2 | 1 | W75 | PLN75 | ET75 |
