| Certifications | |
|---|---|
| Compliance | AS60529 |
| Protection | |
| Materials | Brass Nickle Plate / Neoprene |
| IP Rating | IP68 (7 Metres) – Note: For compliance to IP68 rating, the approved sealing washer must be installed onto the entry thread (Sold Separately) |
Need help choosing the right product?
Our team is here to help.

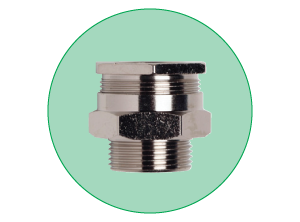

Nickel plated brass cable glands for use with circular unarmoured and flexible cables to secure and ensure an IP68 entry for cable into panel or enclosure.
The cable glands in this range are suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust Weatherproof gland type termination is required.
| Part Number | Range Min. | Range Max. | Dia. | Across Corners | Across Flats | Max. Protrusion | Entry Thread Length | Shroud | Pack Units | Sealing Washer | Locknut | Earth Tag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPHM16A | 2.0 | 8.0 | M16x1.5 | 22.0 | 19.0 | 18.5 | 10.0 | SHR-0 | 30 | W16 | PLN16 | ET16 |
| GPHM16B | 7.0 | 11.9 | M16x1.5 | 25.7 | 22.2 | 18.5 | 10.0 | SHR-1 | 24 | W16 | PLN16 | ET16 |
| GPHM20A | 2.0 | 9.5 | M20x1.5 | 27.0 | 23.3 | 19.0 | 10.0 | SHR-1 | 24 | W20 | PLN20 | ET20 |
| GPHM20B | 9.2 | 14.7 | M20x1.5 | 27.0 | 23.3 | 19.0 | 10.0 | SHR-1 | 24 | W20 | PLN20 | ET20 |
| GPHM25 | 13.0 | 20.5 | M25x1.5 | 36.7 | 31.7 | 20.0 | 10.0 | SHR-3 | 9 | W25 | PLN25 | ET25 |
| GPHM32 | 20.0 | 26.2 | M32x1.5 | 43.1 | 37.2 | 20.0 | 10.0 | SHR-3 | 6 | W32 | PLN32 | ET32 |
| GPHM40 | 25.3 | 32.5 | M40x1.5 | 48.2 | 44.4 | 20.5 | 15.0 | SHR-4 | 8 | W40 | PLN40 | ET40 |
| GPHM50A | 30.0 | 37.0 | M50x1.5 | 65.0 | 60.0 | 25.0 | 15.0 | SHR-6 | 4 | W50 | PLN50 | ET50 |
| GPHM50B | 36.4 | 44.0 | M50x1.5 | 65.0 | 60.0 | 25.0 | 15.0 | SHR-6 | 4 | W50 | PLN50 | ET50 |
| GPHM63A | 42.0 | 50.0 | M63x1.5 | 79.1 | 73.0 | 25.0 | 15.0 | SHR-7 | 2 | W63 | PLN63 | ET63 |
| GPHM63B | 49.0 | 56.0 | M63x1.5 | 79.1 | 73.0 | 25.0 | 15.0 | SHR-7 | 2 | W63 | PLN63 | ET63 |
