| Product Details | |
|---|---|
| Weight | 3kg |
| Dimensions | L 180mm W 160mm H 70mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| F-4575-20 | Gland Adaptor (M20 entry thread) |
| F-4575-25 | Gland Adaptor (M25 entry thread) |
| F-4575-32 | Gland Adaptor (M32 entry thread) |
| F-4575-40 | Gland Adaptor (M40 entry thread) |
| F-4575-50 | Gland Adaptor (M50 entry thread) |
| F-4575-63 | Gland Adaptor (M63 entry thread) |

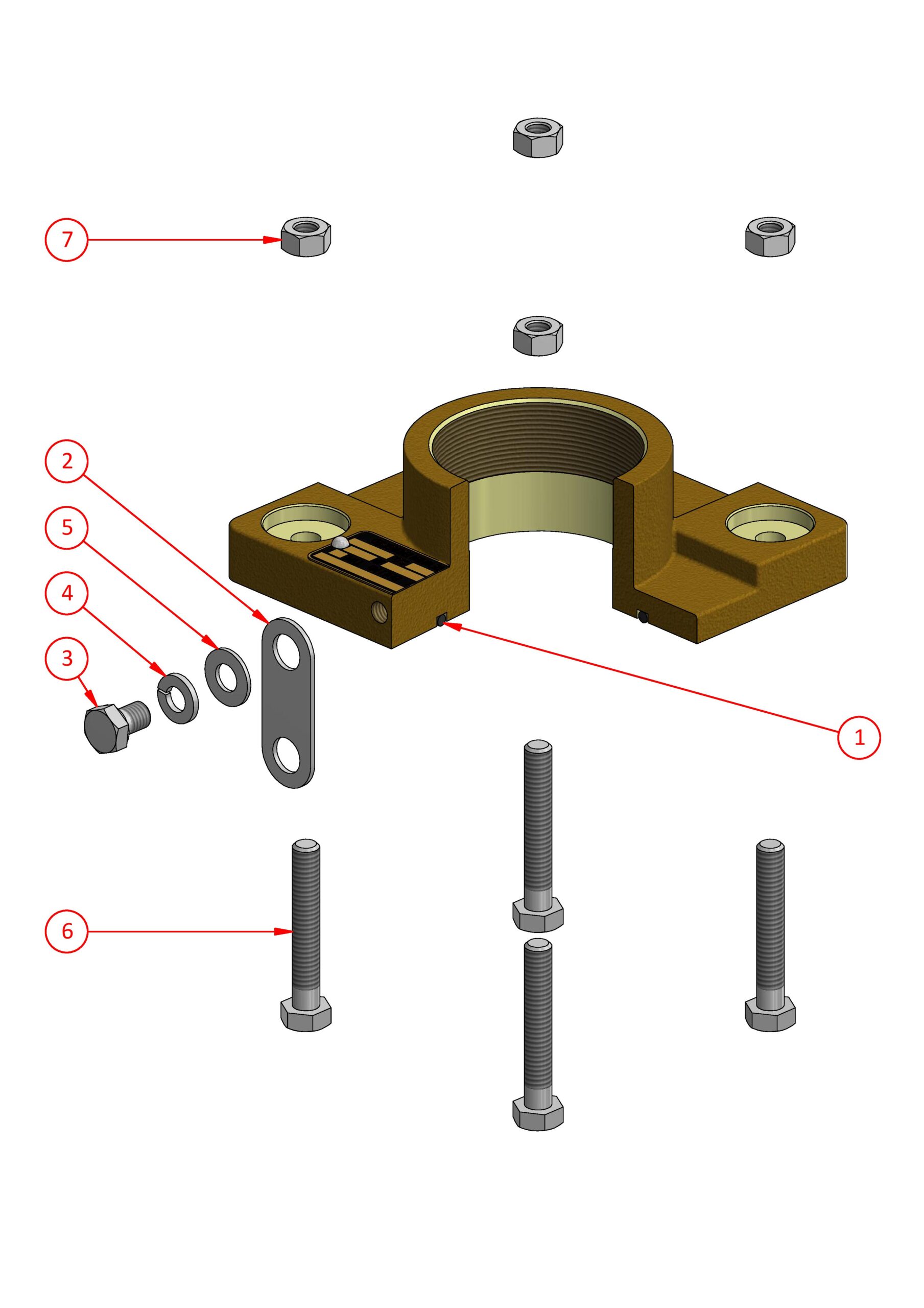

| # | Part Number | Description |
|---|---|---|
| 1 | AI019006 | O-ring ID 82.14 x sect. 3.53 |
| 2 | Earth Strap | |
| 3 | AH113091 | Screw M8 x 10 hex. head |
| 4 | AH009363 | Spring Washer 5/16" |
| 5 | AH009277 | Washer 5/16" |
| 6 | AH113099 | Screw M8 x 50 hex. head |
| 7 | AH120009 | Nut M8 |
