| Product Details | |
|---|---|
| Weight | 6kg |
| Dimensions | L 170mm W 130mm H 70mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| F-4629-20 | Gland Adaptor (M20 entry thread) |
| F-4629-25 | Gland Adaptor (M25 entry thread) |
| F-4629-32 | Gland Adaptor (M32 entry thread) |
| F-4629-40 | Gland Adaptor (M40 entry thread) |
| F-4629-50 | Gland Adaptor (M50 entry thread) |
| F-4629-63 | Gland Adaptor (M63 entry thread) |

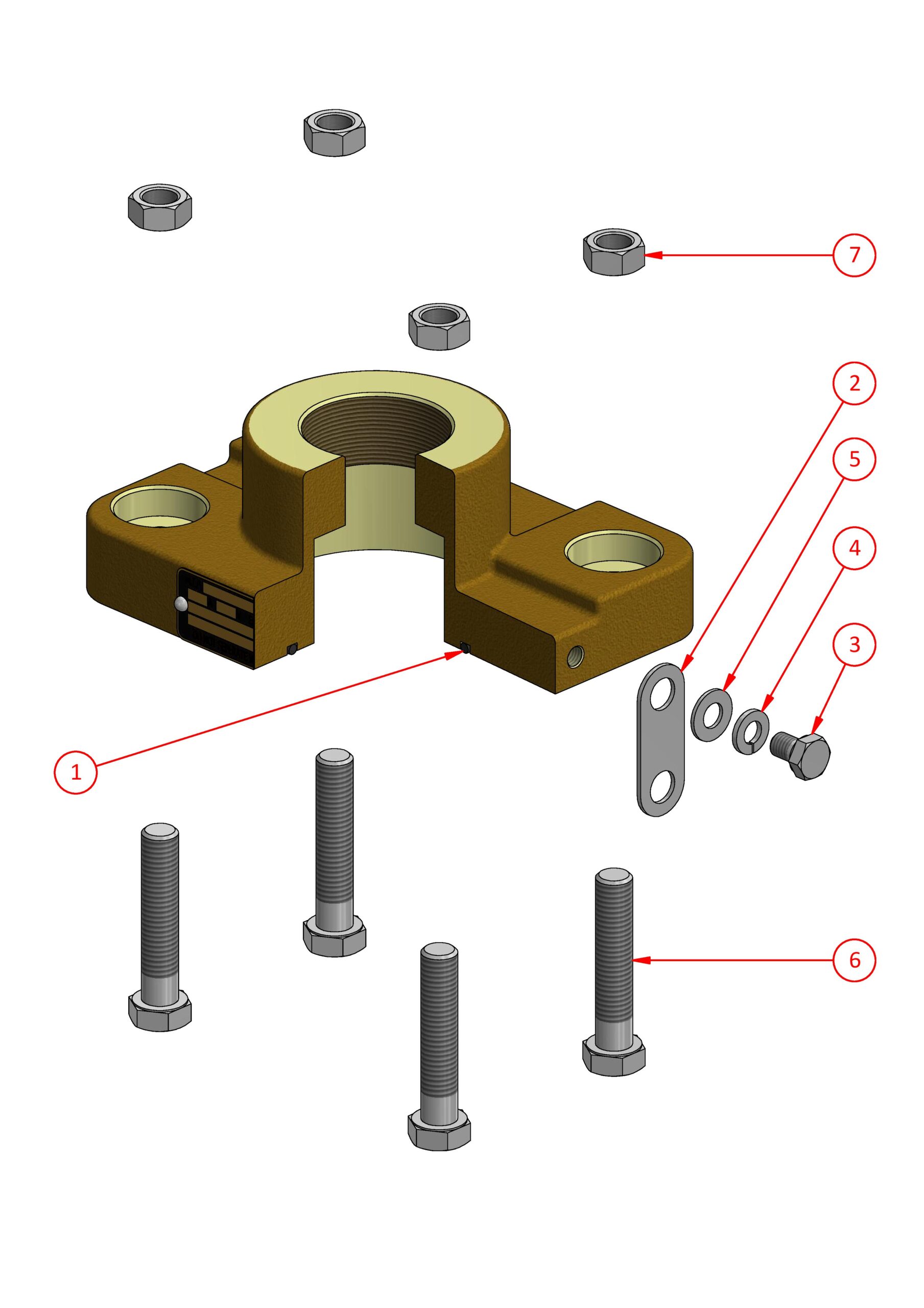

| # | Part Number | Description |
|---|---|---|
| 1 | AI019011 | O-ring ID 91.67 x sect. 3.53 |
| 2 | Earth Strap | |
| 3 | AH113091 | Screw M8 x 10 hex. head |
| 4 | AH009363 | Spring Washer 5/16" |
| 5 | AH009277 | Washer 5/16" |
| 6 | AH151038 | Screw M12 x 60 hex. head |
| 7 | AH120012 | Nut M12 |
