| Certifications | |
|---|---|
| Compliance | Explosion protected to IEC60079 Series |
| Protection | Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC |
| Materials | Brass Nickle Plated / Neoprene / Nylon |
| IP Rating | IP66/68 (7 Metres for 1 Hour) - Note: For compliance to IP68 rating, the approved sealing washer must be installed onto the entry thread |
Need help choosing the right product?
Our team is here to help.
For Explosion Protected Armoured Cable Applications

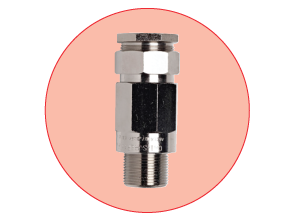

Nickel plated brass cable glands for use with circular armoured cables to secure the cable and armour to provide electrical continuity between the amour and the entry thread of the gland and the enclosure and to provide an Explosion Protected, Weatherproof and Dust Excluding Ignition Proof entry into panels or enclosures that meet these requirements.
The cable glands in this range are suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust Explosion Protected, armoured, Weatherproof gland type termination is required.
| Part Number | Range Min. | Range Max. | Entry Thread Dia. | Across Corners | Across Flats | Max. Protrusion | Entry Thread Length | SWA Dia. | Shroud | Pack Units | Sealing Washer | Locknut | Earth Tag |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FWPM0 | 9.0 | 11.9 | M20x1.5 | 26.9 | 23.3 | 54.0 | 15.9 | 0.9 | SHR-1 | 16 | W20 | PLN20 | ET20 |
| FWPM1 | 11.5 | 13.5 | M20x1.5 | 26.9 | 23.3 | 54.0 | 15.9 | 0.9 | SHR-1 | 16 | W20 | PLN20 | ET20 |
| FWPM1A | 13.5 | 17.2 | M20x1.5 | 30.5 | 26.3 | 57.0 | 15.9 | 0.9-1.25 | SHR-2 | 10 | W20 | PLN20 | ET20 |
| FWPM1B-25 | 17.0 | 19.6 | M25x1.5 | 34.8 | 30.3 | 60.0 | 15.9 | 0.9-1.25 | SHR-3 | 9 | W25 | PLN25 | ET25 |
| FWPM2 | 19.5 | 22.1 | M25x1.5 | 36.1 | 33.3 | 64.0 | 19.0 | 0.9-1.25 | SHR-3 | 9 | W25 | PLN25 | ET25 |
| FWPM2A | 22.0 | 26.2 | M25x1.5 | 40.4 | 37.2 | 67.0 | 19.0 | 1.25-1.6 | SHR-4 | 6 | W25 | PLN25 | ET25 |
| FWPM2B-32 | 26.0 | 28.7 | M32x1.5 | 44.7 | 41.2 | 70.0 | 19.0 | 1.25-1.6 | SHR-4 | 5 | W32 | PLN32 | ET32 |
| FWPM3 | 28.5 | 31.2 | M32x1.5 | 55.0 | 50.8 | 81.0 | 25.4 | 1.25-1.6 | SHR-5 | 2 | W32 | PLN32 | ET32 |
| FWPM3A | 31.0 | 35.2 | M32x1.5 | 55.0 | 50.8 | 81.0 | 25.4 | 1.6-2.0 | SHR-5 | 2 | W32 | PLN32 | ET32 |
| FWPM4 | 35.0 | 38.5 | M40x1.5 | 61.9 | 57.1 | 84.0 | 25.4 | 1.6-2.0 | SHR-6 | 2 | W40 | PLN40 | ET40 |
| FWPM4A | 38.5 | 41.7 | M40x1.5 | 61.9 | 57.1 | 84.0 | 25.4 | 1.6-2.0 | SHR-6 | 2 | W40 | PLN40 | ET40 |
| FWPM5 | 41.5 | 46.7 | M50x1.5 | 79.1 | 73.0 | 97.0 | 25.4 | 2.0-2.5 | SHR-8 | 1 | W50 | PLN50 | ET50 |
| FWPM5A | 46.5 | 51.3 | M50x1.5 | 79.1 | 73.0 | 97.0 | 25.4 | 2.0-2.5 | SHR-8 | 1 | W50 | PLN50 | ET50 |
| FWPM5B | 51.0 | 55.4 | M50x1.5 | 79.1 | 73.0 | 97.0 | 25.4 | 2.0-2.5 | SHR-8 | 1 | W50 | PLN50 | ET50 |
| FWPM6 | 55.0 | 60.2 | M63x1.5 | 92.8 | 85.7 | 102.0 | 25.4 | 2.0-2.5 | SHR-9 | 1 | W63 | PLN63 | ET63 |
| FWPM6A | 60.0 | 64.1 | M63x1.5 | 92.8 | 85.7 | 102.0 | 25.4 | 2.0-2.5 | SHR-9 | 1 | W63 | PLN63 | ET63 |
| FWPM6B | 64.0 | 68.2 | M63x1.5 | 92.8 | 85.7 | 102.0 | 25.4 | 2.0-2.5 | SHR-9 | 1 | W63 | PLN63 | ET63 |
