Earthing Receptacle – AG664BE – AG614BE

Product Details
Weight6kg
DimensionsL 180mm W 140mm H 320mm
ComplianceExplosion protected to AS1299 and EN/IEC 60079 Series
MaterialsManganese Bronze/Brass
IP RatingIP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number Description Colour
AG664BE 660V Restrained Earthing Receptacle Orange
AG614BE 1100V Restrained Earthing Receptacle Blue

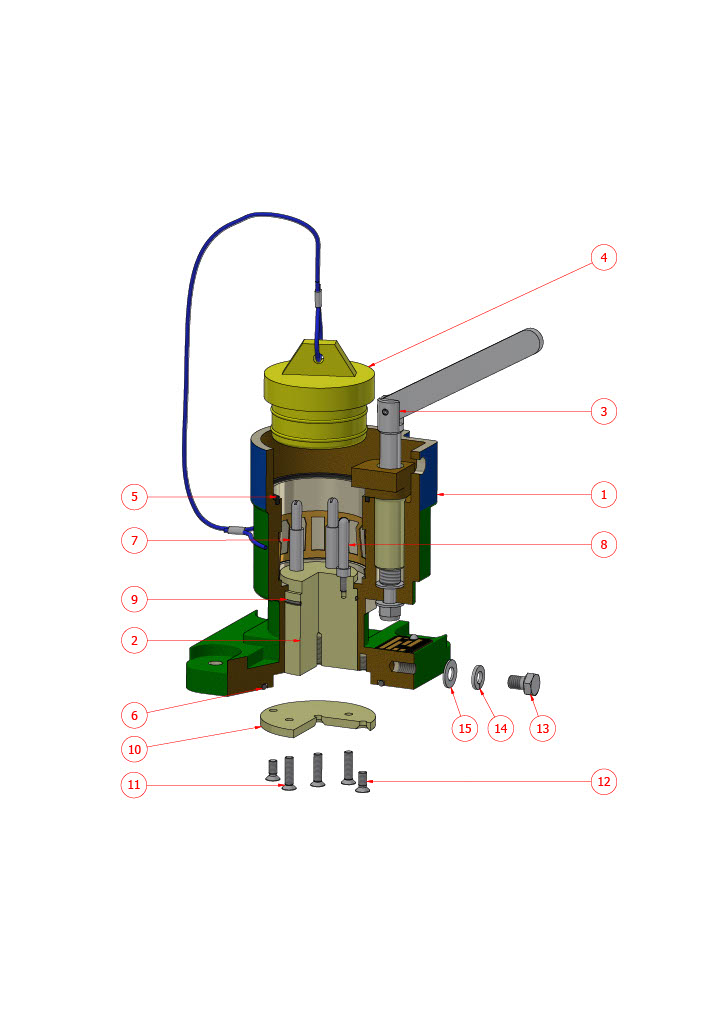

# Part Number Description
1 3492B Receptacle Body
2 4564E Earthing Receptacle Interior
3 3856 Jacking Screw
4 F-309 Sealing Plug
5 4401-1 Seal
6 AI019006 O-ring ID 82.14 x sect 3.53
7 4566E Phase Pin
8 4569E Pilot Pin
9 AI019008 O-ring ID 47.35 x sect 1.78
10 4571E Interior Retaining Plate
11 AH112500 Screw M5 x 20 csk. head
12 AH151034 Screw M5 x 12 csk. Head
13 AH113091 Screw M8 x 10 hex. Head
14 AH009363 Spring Washer 5/16"
15 AH009277 Washer 5/16" X 5/8"
