| Product Details | |
|---|---|
| Weight | 8kg |
| Dimensions | L 150mm W 150mm H 410mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Neoprene / Stainless Steel |
| IP Rating | IP66 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AR316R | 1100V Dummy Plug with Pilot Diode 6 Pin | Blue |
| AR336R | 3300V Dummy Plug with Pilot Diode 6 Pin | Red |
| AR316RS | 1100V Dummy Plug with Pilot Diode 6 Pin (Stainless steel nose cone) | Blue |
| AR336RS | 3300V Dummy Plug with Pilot Diode 6 Pin (Stainless steel nose cone) | Red |

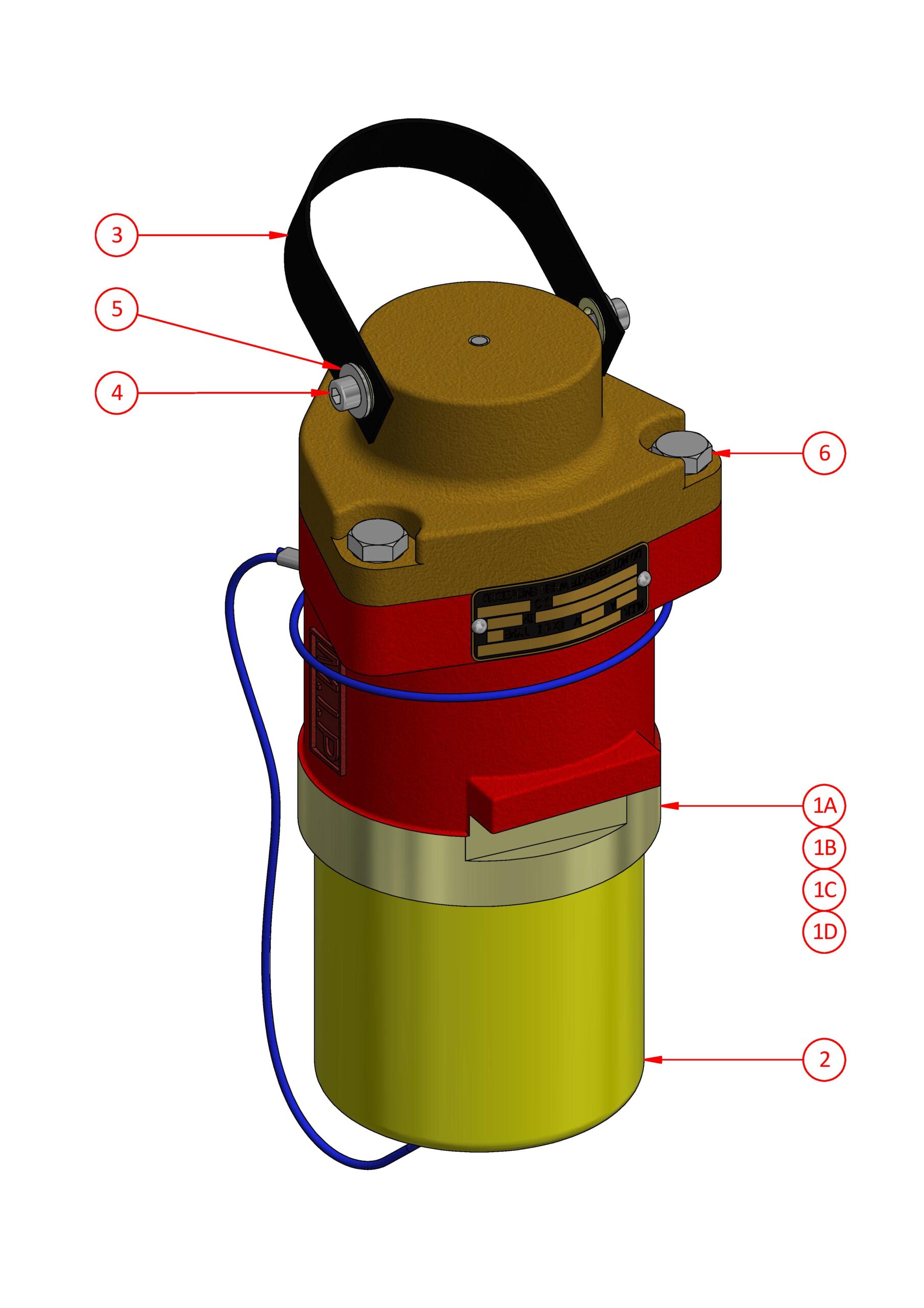

| # | Part Number | Description |
|---|---|---|
| 1A | F-3342-316 | 1100V Nose Cone |
| 1B | F-3342-336 | 3300V Nose Cone |
| 1C | F-3342-316SS | 1100V Nose Cone Stainless Steel |
| 1D | F-3342-336SS | 3300V Nose Cone Stainless Steel |
| 2 | F-264L | Protection Cap |
| 3 | F-AX000400 | Handle |
| 4 | AH115112 | Screw M6 x 16 skt. head |
| 5 | AH009277 | Washer 5/16" |
| 6 | AH113115 | Screw M10 x 40 hex. head |
