Dummy Plug – AR461TS – AR411TS – AR431TS / AM461TSB – AM411TSB – AM431TSB

Product Details
Weight5.0kg
DimensionsL 250mm W 150mm H 150mm
ComplianceExplosion protected to AS1299 & IEC60079 Series
MaterialsStainless Steel / Teflon / Silicone
IP RatingIP66/68

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number Description Colour
AR461TS 660V 4 Pin Dummy Plug Stainless Steel Orange/Silver
AR411TS 1100V 4 Pin Dummy Plug Stainless Steel Blue/SiIver
AR431TS 3300V 4 Pin Dummy Plug Stainless Steel Red/Silver
AM461TSB 660V 4 Pin Dummy Plug Stainless Steel (Becker Module) Orange/ Silver
AM411TSB 1100V 4 Pin Dummy Plug Stainless Steel (Becker Module) Blue/SiIver
AM431TSB 3300V 4 Pin Dummy Plug Stainless Steel (Becker Module) Red/Silver

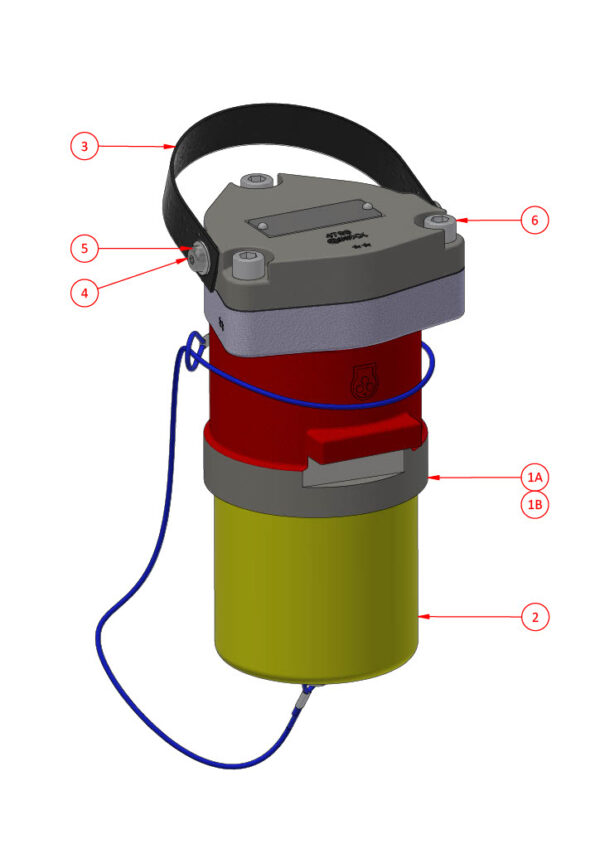

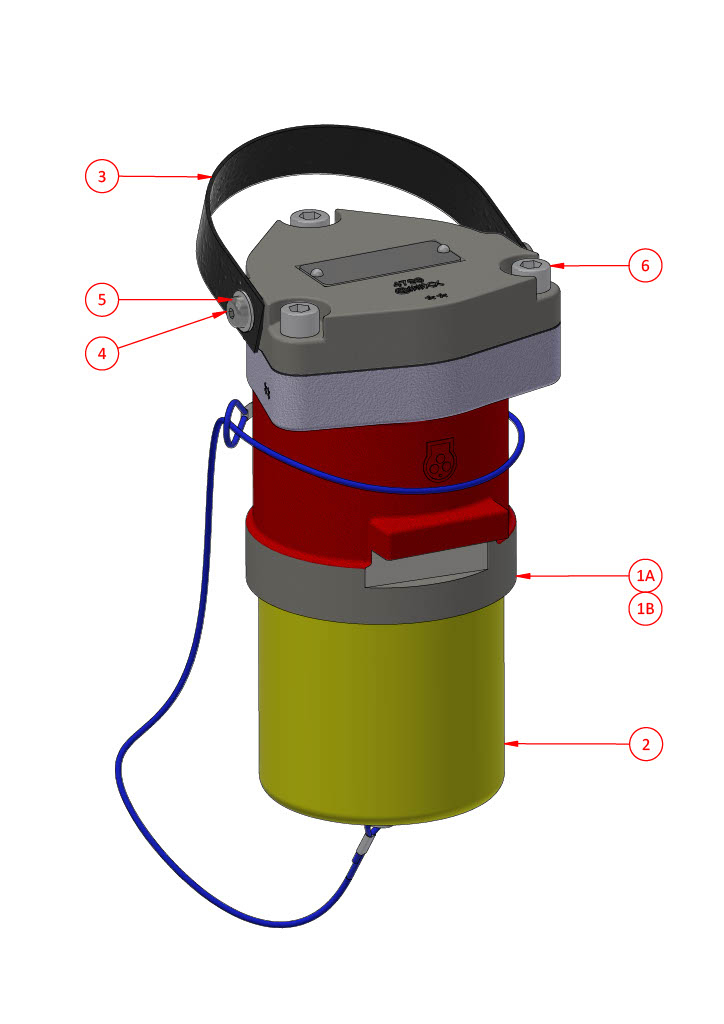

# Part Number Description
1A 4779-1 30D/425A Nose Cone Stainless Steel
1B 4779-2 30D/425A Nose Cone With Slot Stainless Steel
2 F-264L Dust Cap With Lead
3 F-AX000400 Handle
4 AH117116 M6 X 12 Button Head Screw
5 AH150014 M6 Plain Washer
6 AH115149 M10 X 40 Socket Head Cap Screw Zinc Plated
