Double Insulated Twinflex NBR/PVC Cables 75°C 0.6/1kV

Double Insulated Twinflex NBR/PVC Cables 75°C 0.6/1kV

Typical Uses

Designed for use by Telecoms companies for phone equipment, battery cables for use indoors and outdoors, in dry as well as wet locations on motorised vehicles, or battery powered equipment such as fork lifts, field conveyors etc. Also in high quality booster cables.

The materials used in the manufacture of these cables are RoHS Compliant.

Temperature Range: -30 to +75°C static, -20 to +75°C flexible
Rated Voltage: 0.6/1kV fixed wiring 450/750V for flexible
Relevant Standards: AS/NZS 5000, AS/NZS 1125, IEC 60332-1, AS/NZS 3808, VDE 0250, VDE 472
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

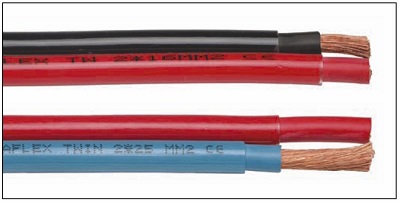

Cable Construction

  1. Conductors: Fine strands of electrolytic copper wire for extra flexibility.
  2. Insulation: Cores in Red/Black or Red/Blue Aflex NBR Elastomer compound specially formulated for improved cold resistance.
  3. Sheathing: Transparent PVC compound resistant to cold, abrasion, industrial oil and chemicals.

UV stabilised and flame retardant.

Technical Data

Part Number Core Nom. Stranding No./mm Nom. O.D. mm Approx. Cable Weight Kg/Km Nom. Amps 30°C Open Air
TW01.5 2 x 1.5 48/0.21 4.8 x 7.4 84 16
TW02.5 2 x 2.5 80/0.21 5.5 x 12 95 22
TW04 2 x 4.0 127/0.21 6.0 x 13 120 30
TW06 2 x 6.0 172/0.21 6.5 x 14 160 38
TW10 2 x 10 304/0.21 8.0 x 17 270 53
TW16 2 x 16 462/0.21 9.0 x 19 400 71
TW25 2 x 25 742/0.21 11.0 x 23 605 97
TW35 2 x 35 1050/0.21 12.5 x 26 780 115
TW50 2 x 50 1482/0.21 14.5 x 30 1150 140
TW70 2 x 70 2090/0.21 16.0 x 33 1580 175
