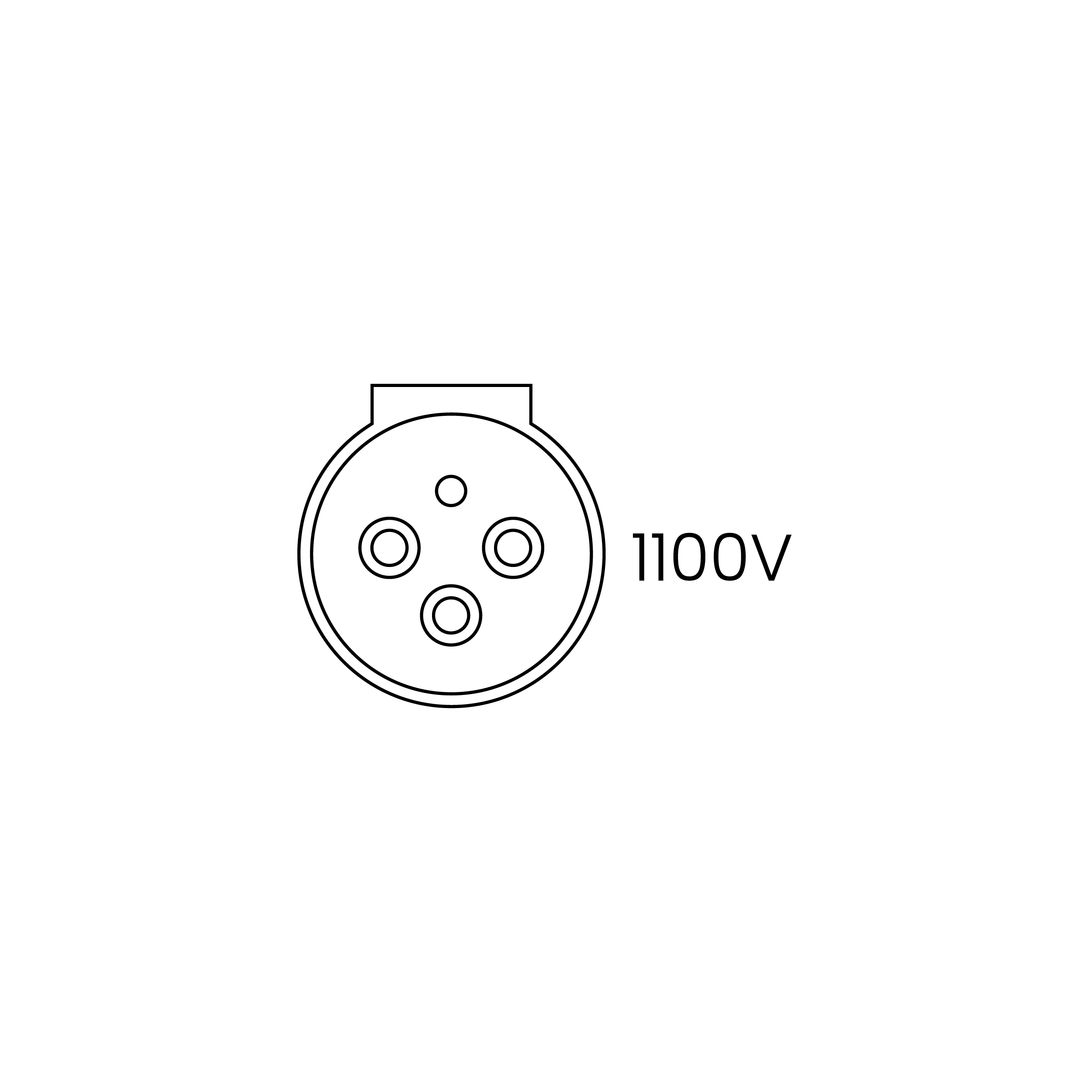

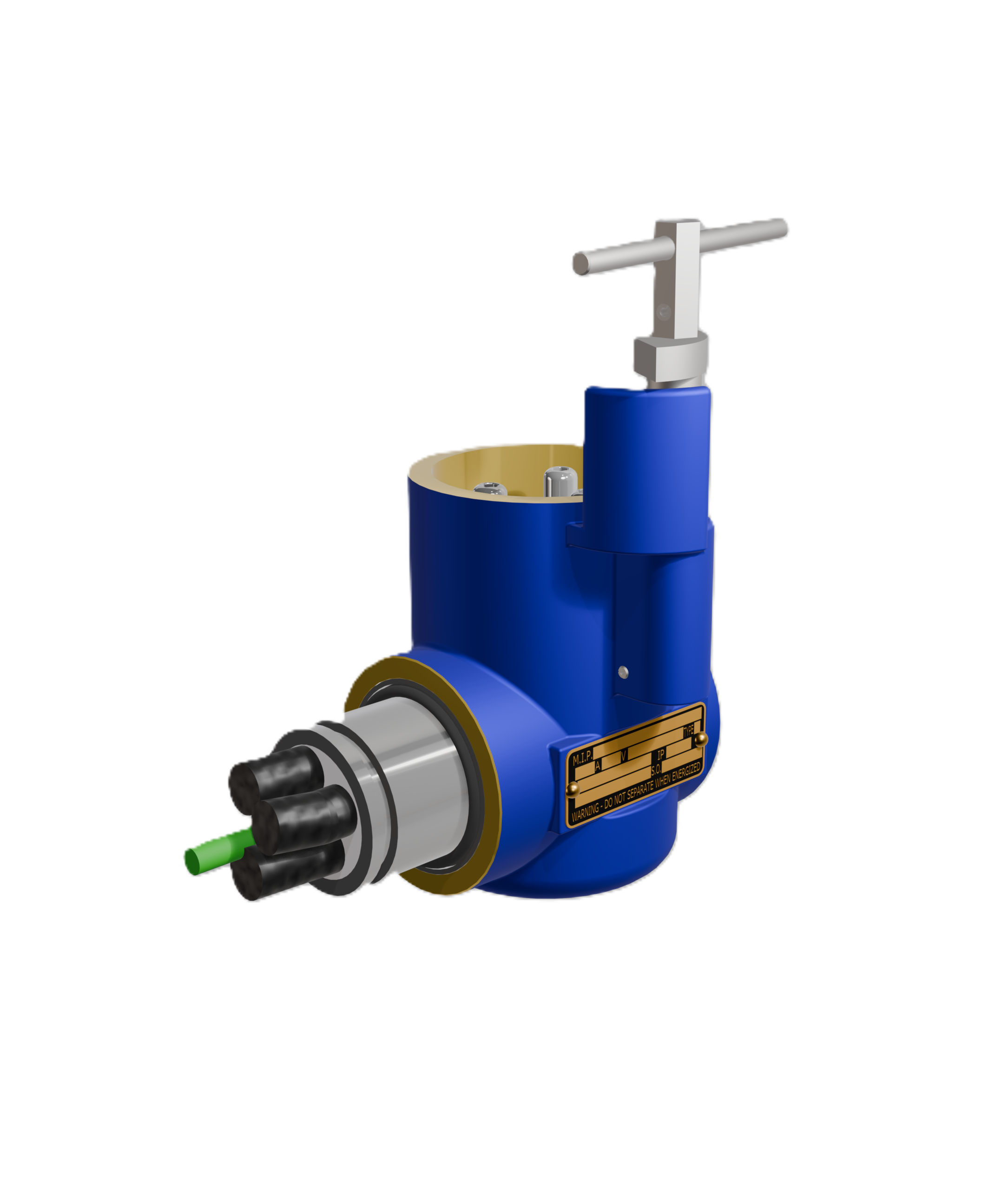

Cable Reel Receptacle (1100V) – 125 Amp Series

Product Details
Weight5kg
DimensionsL 245mm W 130mm H 250mm
ComplianceExplosion protected to AS/NZS1299 & IEC60079 Series
MaterialsManganese Bronze / PTFE
IP RatingIP66

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number Description Colour
AG214BL 1100V Restrained Cable Reel Receptacle Left Hand Blue
AG214BR 1100V Restrained Cable Reel Receptacle Right Hand Blue
NB: Receptacle supplied with 0.6mtr 35mmsq Tails

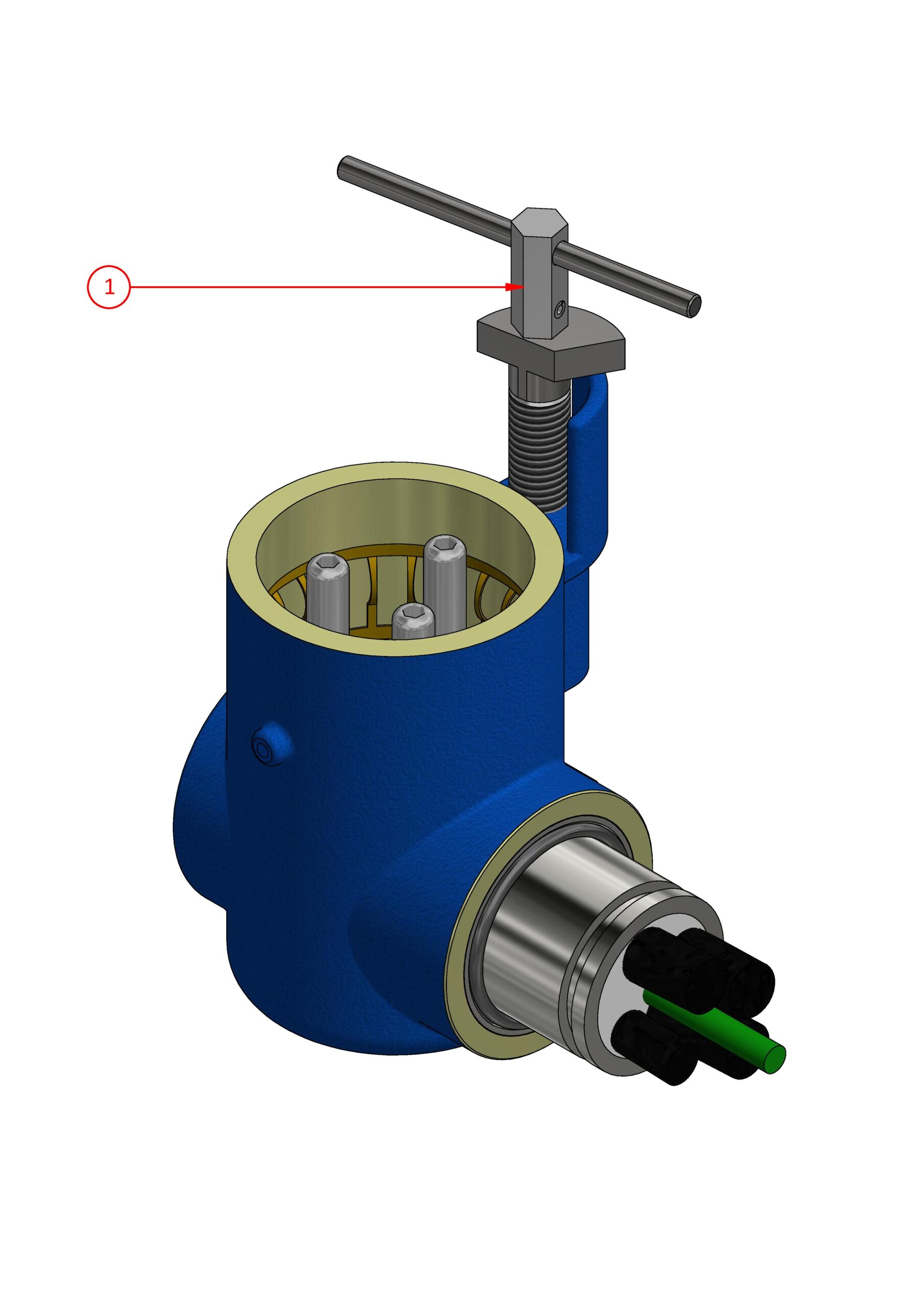

# Part Number Description
1 F-017 Jacking Screw
