Bolted Coupler (Body Size C - 6600V)

Bolted Coupler (Body Size C – 6600V) – AA374S – AA376S / AA474S – AA476S

Order Procedure

  1. Select Complete Coupler from Table 1
  2. Select Phase Thimble from Table 2 (3 Required)
  3. Select Gland from No.2 to No.5 Glands
  4. Select Accessories from Body Size C Accessories
Product Details
Weight17.0kg
DimensionsL 200mm W 210mm H 280mm
ComplianceExplosion protected to AS/NZS1300 & IEC60079 Series
MaterialsStainless Steel / PTFE
IP RatingIP66
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Table 1

Part Number Description Colour
AA374S 300A 6600V Bolted Coupler 4 Pin Red
AA376S 300A 6600V Bolted Coupler 6 Pin Red
AA474S 425A 6600V Bolted Coupler 4 Pin Red/Silver
AA476S 425A 6600V Bolted Coupler 6 Pin Red/Silver
Coupler supplied with Pilot Thimble
Phase Thimble – c/w screw AH009868 1/4″ x 2 1/4″ skt. head
Part Number CSA ID mm Utilux Die No.
F-201-432 25 8.0 38-92 Cu
F-201-302 35 9.5 38-115 Cu
F-201-303 50 10.5 38-115 Cu
F-201-303-1 70 12.8 38-142 Cu
F-201-304-1 95 14.0 38-165 Cu
F-201-305-1 120 16.0 38-165 Cu
F-201-306-1 150 18.0 38-183 Cu
F-201-307-1 185 21.8 SOLDER ONLY
F-201-326-1 240 24.2 SOLDER ONLY
F-3641 300 26.3 40-281 Cu
F-3641-1 240 24.2 40-281 Cu
F-3641-2 185 21.2 38-231 Cu
CSA is indicative only. Use ID for thimble selection

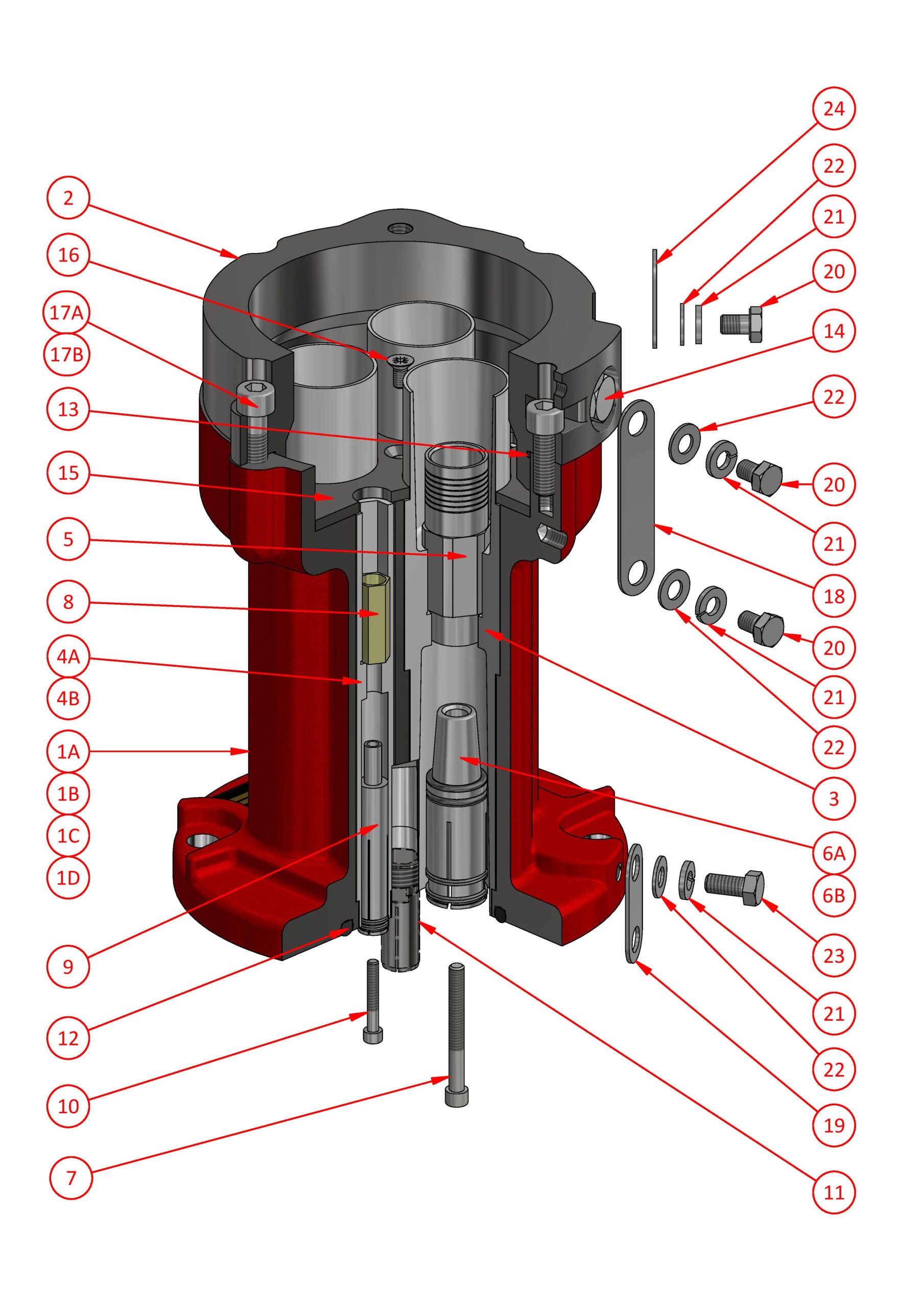

# Part Number Description
1A F-4707S-374 300A 6600V Coupler Body c/w items 1A, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23
1B F-4707S-376 300A 6600V Coupler Body c/w items 1B, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23
1C F-4707S-474 425A 6600V Coupler Body c/w items 1C, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23
1D F-4707S-476 425A 6600V Coupler Body c/w items 1D, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23
2 F-4675 6600V Gland Adaptor Assembly
3 MO4700 Phase Pin Insulator
4A MO4701 Pilot Socket Insulator
4B 4718 Auxiliary Socket Bung
5 Phase Thimble See Table 2
6A F-201-299 300A Phase Socket c/w O-ring AI019013
6B F-201-300-1 425A Phase Socket c/w O-ring AI019013
7 AH009868 Screw 1/4" x 2 1/4" skt. head
8 F-3727 Pilot Thimble c/w screw AH009834 3/16" x 1 1/4" skt. head
9 F-3042-1 Pilot Socket
10 AH009834 Screw 3/16" x 1 1/4" skt. head
11 4708 Earth Connector
12 AI018993 O-ring ID 113.67 x sect. 6.99
13 AI019057 O-ring ID 145.72 x sect. 2.62
14 F-PM16SS M16 Blanking Plug c/w Sealing Washer
15 4699 Retaining Plate
16 AH151037 Screw M6 x 12 csk. head
17A AH117113 Screw M10 x 40 skt. head
17B AH115114 Screw M10 x 30 skt. head
18 201-264-8 Earth Strap
19 201-264-3 Earth Strap
20 AH113091 Screw M8 x 10 hex. head
21 AH151071 Spring Washer M8
22 AH009277 Washer 5/16"
23 AH113097 Screw M8 x 16 hex. head
24 201-264-7 Earth Strap
