| Product Details | |
|---|---|
| Weight | 13kg |
| Dimensions | L 180mm W 180mm H 380mm |
| Compliance | Explosion protected to IEC60079 Series |
| Materials | Manganese Bronze / Brass / Aluminium / PTFE |
| IP Rating | IP66 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AA364T2 | 300A 1100V Bolted Coupler | Orange |
| AA314T2 | 300A 1100V Bolted Coupler | Blue |
| AA464T2 | 425A 660V Bolted Coupler | Orange/Silver |
| AA414T2 | 425A 1100V Bolted Coupler | Blue/Silver |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-201-432 | 25 | 8.0 | 38-92 Cu |
| F-201-302 | 35 | 9.5 | 38-115 Cu |
| F-201-303 | 50 | 10.5 | 38-115 Cu |
| F-201-303-1 | 70 | 12.8 | 38-142 Cu |
| F-201-304-1 | 95 | 14.0 | 38-165 Cu |
| F-201-305-1 | 120 | 16.0 | 38-165 Cu |
| F-201-306-1 | 150 | 18.0 | 38-183 Cu |
| F-201-307-1 | 185 | 21.8 | 38-231 Cu |
| F-201-326-1 | 240 | 24.2 | SOLDER ONLY |
| Part Number | Cable Acceptance mm |
|---|---|
| 4021-25 | 22.0-25.0 |
| 4021-30 | 24.0-30.0 |
| 4021-32 | 29.0-32.0 |
| 4021-34 | 31.0-34.0 |
| 4021-37 | 33.0-37.0 |
| 4021-40 | 36.0-40.0 |
| 4021-43 | 39.0-43.0 |
| 4021-47 | 42.0-47.0 |
| 4021-51 | 46.0-51.0 |
| 4021-54 | 50.0-54.0 |
| 4021-57 | 53.0-57.0 |
| 4021-60 | 56.0-60.0 |
| 4021-64 | 59.0-64.0 |
| 4021-67 | 63.0-67.0 |
| 4021-70 | 66.0-70.0 |
| 4021-76 | 69.0-76.0 |
| 4021-80 | 75.0-80.0 |
| 4021-83 | 79.0-83.0 |

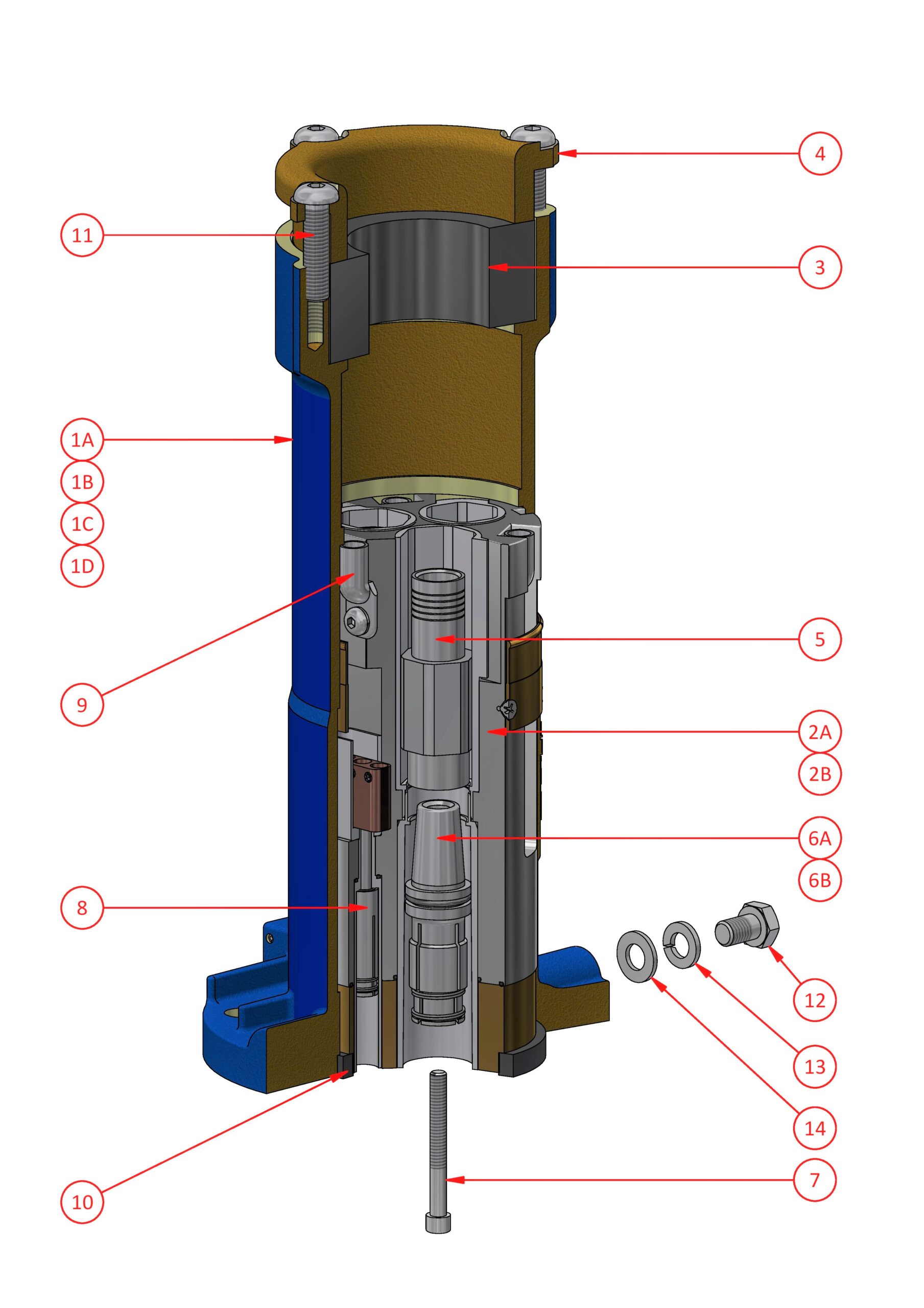

| # | Part Number | Description |
|---|---|---|
| 1A | F-4013-364T | 300A 660V Coupler Body c/w items 1A, 4, 10, 11, 12, 13 & 14 |
| 1B | F-4013-314T | 300A 1100V Coupler Body c/w items 1B, 4, 10, 11, 12, 13 & 14 |
| 1C | F-4013-464T | 425A 660V Coupler Body c/w items 1C, 4, 10, 11, 12, 13 & 14 |
| 1D | F-4013-414T | 425A 1100V Coupler Body c/w items 1D, 4, 10, 11, 12, 13 & 14 |
| 2A | F-4813 | Interior c/w Earth Lugs, Earth Ring, Screws & Pilot Socket Assy |
| 2B | F-4813KIT | Interior Service Kit c/w Insulators & O-rings |
| 3 | Neoprene Grommet | See Table 3 |
| 4 | 4014B | Clamping Cap |
| 5 | Phase Thimble | See Table 2 |
| 6A | F-201-299 | 300A Phase Socket c/w O-ring AI019013 |
| 6B | F-201-300-1 | 425A Phase Socket c/w O-ring AI019013 |
| 7 | AH009868 | Screw 1/4" x 2 1/4" skt. head |
| 8 | F-4819 | Pilot Socket Assy c/w O-ring AI019065 & Pilot Thimble |
| 9 | F-AH017206B | Earth Lug c/w screw AH115115 & washer AH150014 |
| 10 | 4023 | Face Seal |
| 11 | AH151039 | Screw M10 x 40 button head |
| 12 | AH113111 | Screw M10 x 16 hex. head |
| 13 | AH151011 | Spring Washer M10 |
| 14 | AH150011 | Washer M10 |
