| Product Details | |
|---|---|
| Weight | 22.0kg (Alum Body) |
| Dimensions | L 560mm W 270mm H 300mm |
| Compliance | Non Hazardous Area Only. Dimensions to AS1299 |
| Materials | Aluminium / PTFE / Stainless Steel |
| IP Rating | IP66 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| C81S8AM21S | 800a 11kv 8 Bolt Coupler Aluminium - Small TRS Cable Clamp |
| C81S8AM31W | 800a 11kv 8 Bolt Coupler Stainless Steel - Small TRS Cable Clamp |
| Part Number | Cable Acceptance mm |
|---|---|
| 4848-43 | 39-43 |
| 4848-46 | 42-46 |
| 4848-49 | 45-49 |
| 4848-52 | 48-52 |
| 4848-55 | 51-55 |
| 4848-58 | 54-58 |
| 4848-61 | 57-61 |
| 4848-64 | 60-64 |
| 4848-67 | 63-67 |
| 4848-70 | 66-70 |
| 4848-73 | 69-73 |
| 4848-76 | 72-76 |
| 4848-79 | 75-79 |
| 4848-82 | 78-82 |
| 4848-85 | 81-85 |
| 4848-88 | 84-88 |
| 4848-91 | 87-91 |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-201-432 | 25 | 8 | 38-92 Cu |
| F-201-302 | 35 | 9.5 | 38-115 Cu |
| F-201-303 | 50 | 10.5 | 38-115 Cu |
| F-201-303-1 | 70 | 12.8 | 38-142 Cu |
| F-201-304-1 | 95 | 14 | 38-165 Cu |
| F-201-305-1 | 120 | 16 | 38-165 Cu |
| F-201-306-1 | 150 | 18 | 38-183 Cu |
| F-201-307-1 | 185 | 21.8 | SOLDER ONLY |
| F-201-326-1 | 240 | 24.2 | SOLDER ONLY |
| F-3641 | 300 | 26.3 | 40-281 Cu |
| F-3641-1 | 240 | 24.2 | 40-281 Cu |
| F-3641-2 | 185 | 21.2 | 38-231 Cu |

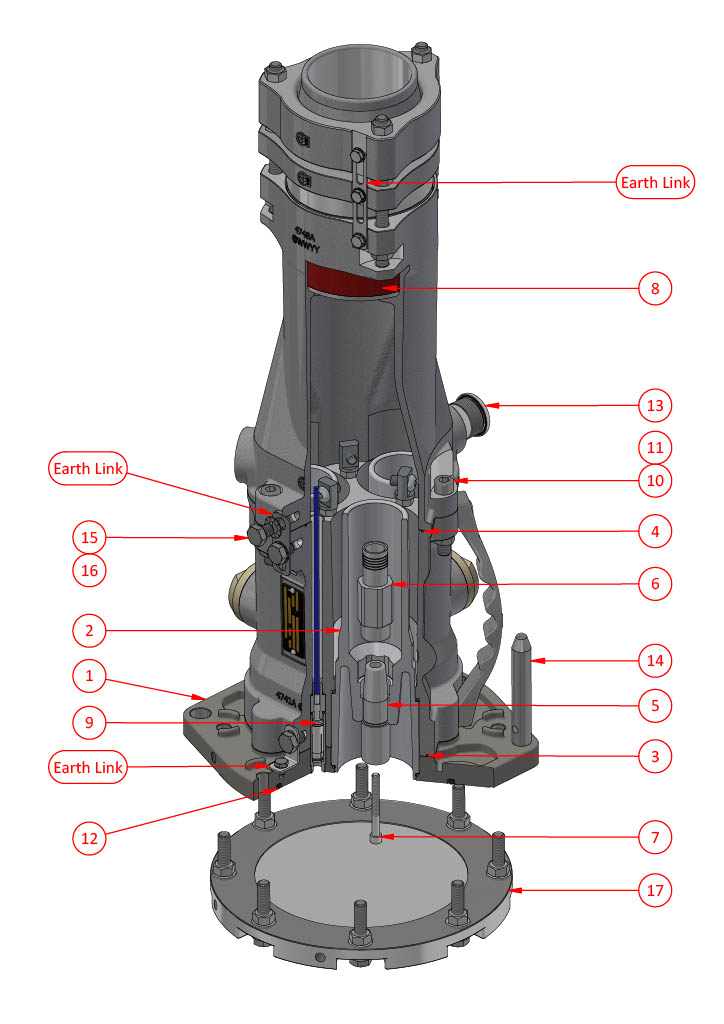

| # | Part Number | Description |
|---|---|---|
| 1 | F-4740S | 800A Coupler Faceplate |
| 2 | F-4775 | Phase Insulator c/w O-ring AI019003 & AI019020 |
| 3 | AI020011 | Faceplate Seal O-ring |
| 4 | AI0120010 | Gland Body Seal O-ring |
| 5 | F-4647 | Phase Pin & O-ring AI019022 |
| 6 | Phase Thimble | See Table 3 |
| 7 | AH009868 | Screw 1/4" x 2 1/4" skt. Head |
| 8 | Grommet | See Table 2 |
| 9 | F-4756 | Pilot Assy c/w Socket, Spring, Insulator |
| 10 | AH115141 | M10 x 60 SS skt. Head |
| 11 | AI120011 | M10 Nut Zinc Plated |
| 12 | AI018994 | O-ring ID 184.0 x sect 5.0 |
| 13 | F-4759A | Filler Plug c/w Sealing Washer |
| 14 | 3378 | Guide Pin |
| 15 | AH117501 | Screw M10 x 16 Hex Head |
| 16 | AH152002 | Serrated Washer M10 |
| 17 | F-4737A | Travel Plate c/w Screws, Nuts and Washers |
