| Product Details | |
|---|---|
| Weight | 13.5kg |
| Dimensions | L 280mm W 280mm H 300mm |
| Compliance | Non Hazardous Area Only. Dimensions to AS/NZS1300 |
| Materials | Aluminium / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| B803A | 800A 11kV Bolted Adaptor | Red/White |
| B804A | 800A 11kV Bolted Adaptor c/w Pilot Assembly | Red/White |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-201-432 | 25 | 8.0 | 38-92 Cu |
| F-201-302 | 35 | 9.5 | 38-115 Cu |
| F-201-303 | 50 | 10.5 | 38-115 Cu |
| F-201-303-1 | 70 | 12.8 | 38-142 Cu |
| F-201-304-1 | 95 | 14.0 | 38-165 Cu |
| F-201-305-1 | 120 | 16.0 | 38-165 Cu |
| F-201-306-1 | 150 | 18.0 | 38-183 Cu |
| F-201-307-1 | 185 | 21.8 | SOLDER ONLY |
| F-201-326-1 | 240 | 24.2 | SOLDER ONLY |
| F-3641 | 300 | 26.3 | 40-281 Cu |
| F-3641-1 | 240 | 24.2 | 40-281 Cu |
| F-3641-2 | 185 | 21.2 | 38-281 Cu |

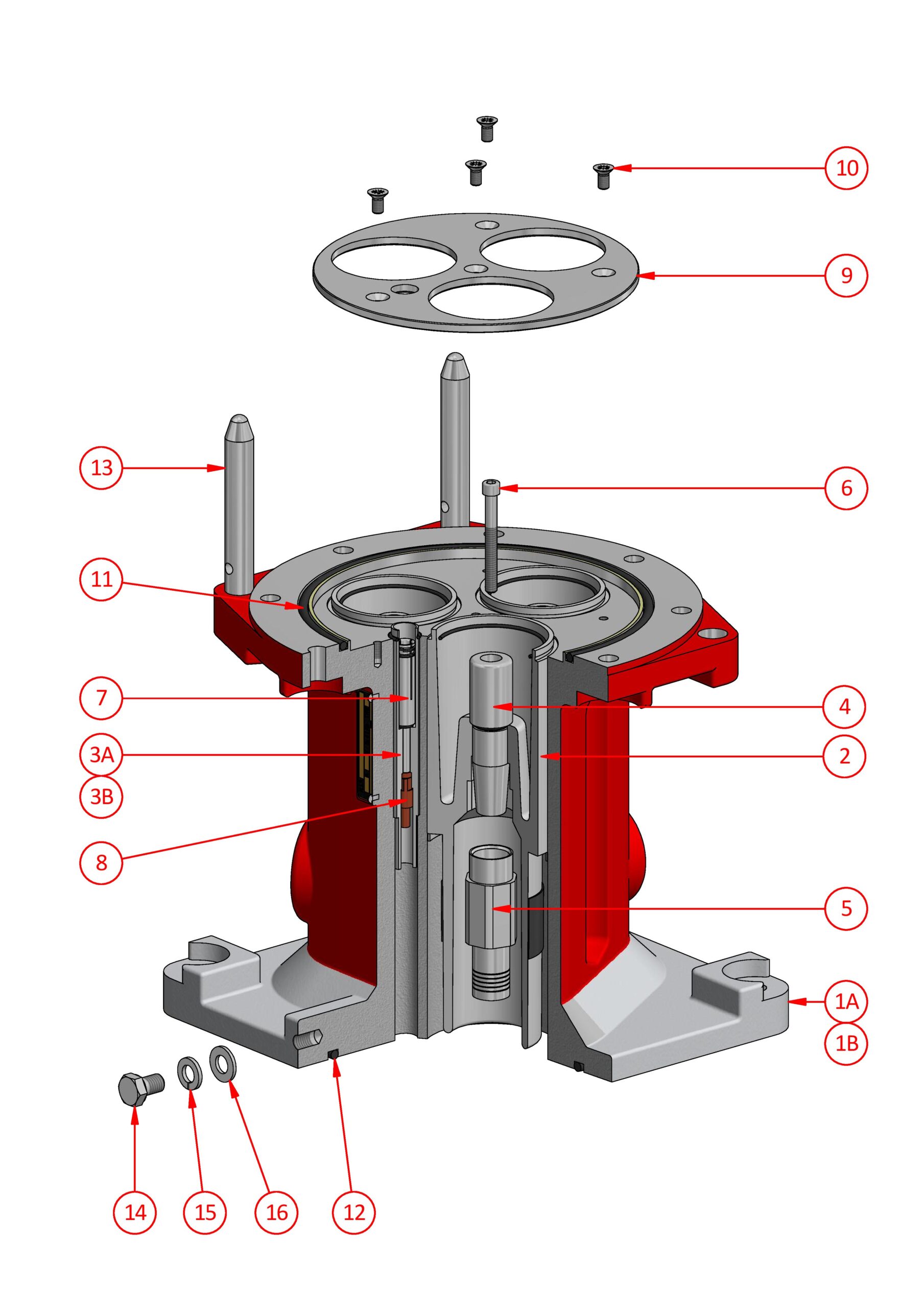

| # | Part Number | Description |
|---|---|---|
| 1A | F-4636A-803 | 800A Adaptor Body c/w items 1A, 9, 10, 11, 12, 13, 14, 15 & 16 |
| 1B | F-4636A-804 | 800A Adaptor Body c/w items 1B, 9, 10, 11, 12, 13, 14, 15 & 16 |
| 2 | F-4668 | Phase Interior c/w O-ring AI019020 |
| 3A | F-4639 | Pilot Insulator c/w O-ring AI019018 |
| 3B | F-4640 | Dummy Pilot Insulator c/w O-ring AI019018 |
| 4 | F-4647 | Phase Pin & O-ring AI019022 |
| 5 | See Table 2 | Phase Thimble |
| 6 | AH009868 | Screw 1/4" x 2 1/4" skt. head |
| 7 | F-4641 | Pilot Socket c/w c/w O-ring AI019030 & Pilot Thimble 4611 |
| 8 | 4611 | Pilot Thimble |
| 9 | 4644A | Interior Retaining Plate |
| 10 | AH151037 | Screw M6 x 12 csk. head |
| 11 | AI018994 | O-ring ID 184.0 x sect. 5.0 |
| 12 | AI018997 | O-ring ID 196.22 x sect. 5.33 |
| 13 | 3378 | Guide Pin |
| 14 | AH113111 | Screw M10 x 16 hex. head |
| 15 | AH151011 | Spring Washer M10 |
| 16 | AH150011 | Washer M10 |
