| Product Details | |
|---|---|
| Weight | 22kg |
| Dimensions | L 220mm W 220mm H 330mm |
| Compliance | Explosion protected to AS/NZS1300 & IEC60079 Series |
| Materials | Stainless Steel / PTFE |
| IP Rating | IP66 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AB374S | 300A 6600V Bolted Adaptor 4 Pin | Red |
| AB376S | 300A 6600V Bolted Adaptor 6 Pin | Red |
| AB474S | 425A 6600V Bolted Adaptor 4 Pin | Red/Silver |
| AB476S | 425A 6600V Bolted Adaptor 6 Pin | Red/Silver |
| Part Number | CSA | ID mm | Utilux Die No. |
|---|---|---|---|
| F-201-432 | 25 | 8.0 | 38-92 Cu |
| F-201-302 | 35 | 9.5 | 38-115 Cu |
| F-201-303 | 50 | 10.5 | 38-115 Cu |
| F-201-303-1 | 70 | 12.8 | 38-142 Cu |
| F-201-304-1 | 95 | 14.0 | 38-165 Cu |
| F-201-305-1 | 120 | 16.0 | 38-165 Cu |
| F-201-306-1 | 150 | 18.0 | 38-183 Cu |
| F-201-307-1 | 185 | 21.8 | SOLDER ONLY |
| F-201-326-1 | 240 | 24.2 | SOLDER ONLY |
| F-3641 | 300 | 26.3 | 40-281 Cu |
| F-3641-1 | 240 | 24.2 | 40-281 Cu |
| F-3641-2 | 185 | 21.2 | 38-231 Cu |

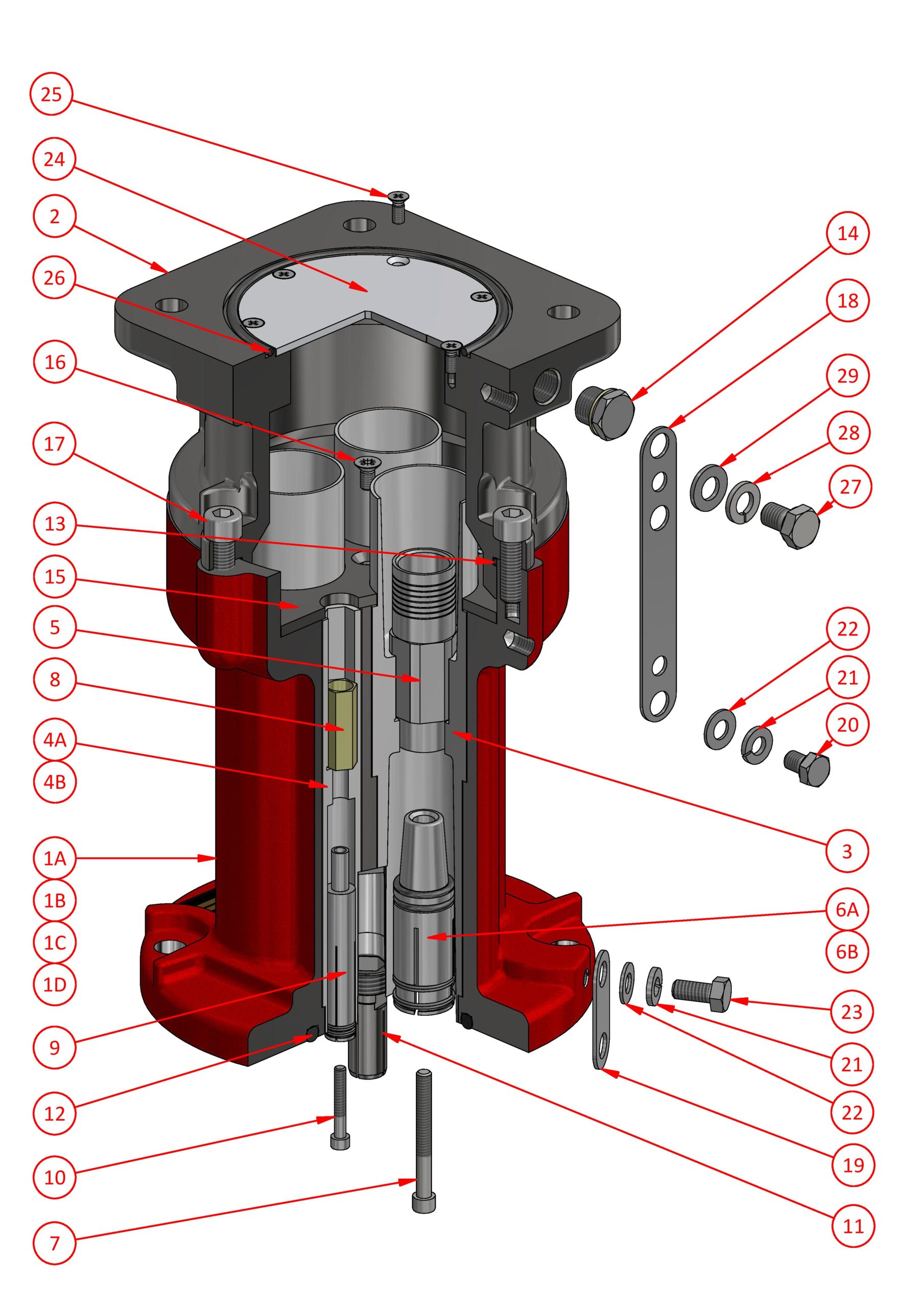

| # | Part Number | Description |
|---|---|---|
| 1A | F-4707S-374 | 300A 6600V Coupler Body c/w items 1A, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23 |
| 1B | F-4707S-376 | 300A 6600V Coupler Body c/w items 1B, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23 |
| 1C | F-4707S-474 | 425A 6600V Coupler Body c/w items 1C, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23 |
| 1D | F-4707S-476 | 425A 6600V Coupler Body c/w items 1D, 11, 12, 15, 16, 18, 19, 20, 21, 22 & 23 |
| 2 | F-4706S | 6600V Adaptor Box Assembly |
| 3 | MO4700 | Phase Pin Insulator |
| 4A | MO4701 | Pilot Socket Insulator |
| 4B | 4718 | Auxiliary Socket Bung |
| 5 | See Table 2 | Phase Thimble |
| 6A | F-201-299 | 300A Phase Socket c/w O-ring AI019013 |
| 6B | F-201-300-1 | 425A Phase Socket c/w O-ring AI019013 |
| 7 | AH009868 | Screw 1/4" x 2 1/4" skt. head |
| 8 | F-3727 | Pilot Thimble c/w screw AH009834 3/16" x 1 1/4" skt. head |
| 9 | F-3042-1 | Pilot Socket |
| 10 | AH009834 | Screw 3/16" x 1 1/4" skt. head |
| 11 | 4708 | Earth Connector |
| 12 | AI018993 | O-ring ID 113.67 x sect. 6.99 |
| 13 | AI019057 | O-ring ID 145.72 x sect. 2.62 |
| 14 | F-PM16SS | M16 Blanking Plug c/w Sealing Washer |
| 15 | 4699 | Retaining Plate |
| 16 | AH151037 | Screw M6 x 12 csk. head |
| 17 | AH115114 | Screw M10 x 30 skt. head |
| 18 | 201-264-1 | Earth Strap |
| 19 | Earth Strap | |
| 20 | AH113091 | Screw M8 x 10 hex. head |
| 21 | AH151071 | Spring Washer M8 |
| 22 | AH009277 | Washer 5/16" |
| 23 | AH113097 | Screw M8 x 16 hex. head |
| 24 | 3066-1 | Cable Spreader Plate |
| 25 | AH151034 | Screw M5 x 12 csk. head |
| 26 | AI019045 | O-ring ID 110.72 x sect. 3.53 |
| 27 | AH113111 | Screw M10 x 16 hex. head |
| 28 | AH151011 | Spring Washer M10 |
| 29 | AH150011 | Washer M10 |
