| Product Details | |
|---|---|
| Weight | 15kg (no skid) 18kg (with skid) |
| Dimensions | L 450mm W 230mm H 300mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Brass / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AH164BQR | 660V Back to Back Receptacle Quick Release | Orange |
| AH114BQR | 1100V Back to Back Receptacle Quick Release | Blue |
| Part Number | Description |
|---|---|
| S | Skid Plate |
| L | Lockable Hasp |

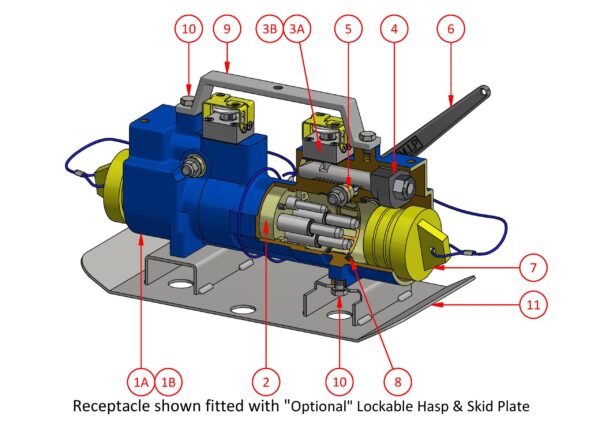

| # | Part Number | Description |
|---|---|---|
| 1A | F-4117QR-164 | 660V Back to Back Body c/w items 1A, 3, 4, 5, 8, 9 & 10 |
| 1B | F-4117QR-114 | 1100V Back to Back Body c/w items 1B, 3, 4, 5, 8, 9 & 10 |
| 2 | F-348-1 | Interior c/w screws AH115135 M6 x 35 skt. head |
| 3A | F-459 | Q/R Locking Mechanism c/w screws AH009860 1/4" x 1" skt. head |
| 3B | F-459L | Q/R Locking Mechanism c/w Lockable Hasp & AH009860 1/4" x 1" skt. head |
| 4 | F-460 | Q/R Rack |
| 5 | F-482 | Q/R Pinion c/w Handle |
| 6 | 4285 | Q/R Handle |
| 7 | F-310 | Sealing Plug |
| 8 | 4401-2 | Seal |
| 9 | 4035 | Lifting Handle |
| 10 | AH113111 | Screw M10 x 16 hex. head |
| 11 | 4043S | Skid Plate |
