Back to Back Receptacle Quick Release (3300V) – AH334BQR

Order Procedure

  1. Select complete Receptacle from Table 1
  2. Add Part No. from Table 1 & Options Table together to get Part No. required (See examples shown under the Options Table)
Product Details
Weight18kg (no skid) 20kg (with skid)
DimensionsL 450mm W 230mm H 300mm
ComplianceExplosion protected to AS/NZS1299 & IEC60079 Series
MaterialsManganese Bronze / Brass / PTFE
IP RatingIP66/68
Download Product PDF

Need help choosing the right product?

Our team is here to help.

Contact Us

Table 1

Part Number Description Colour
AH334BQR 3300V Back to Back Receptacle Quick Release Red
Part Number Description
S Skid Plate
L Lockable Hasp
Examples: AH334BQRS, AH334BQRL, AH334BQRSL

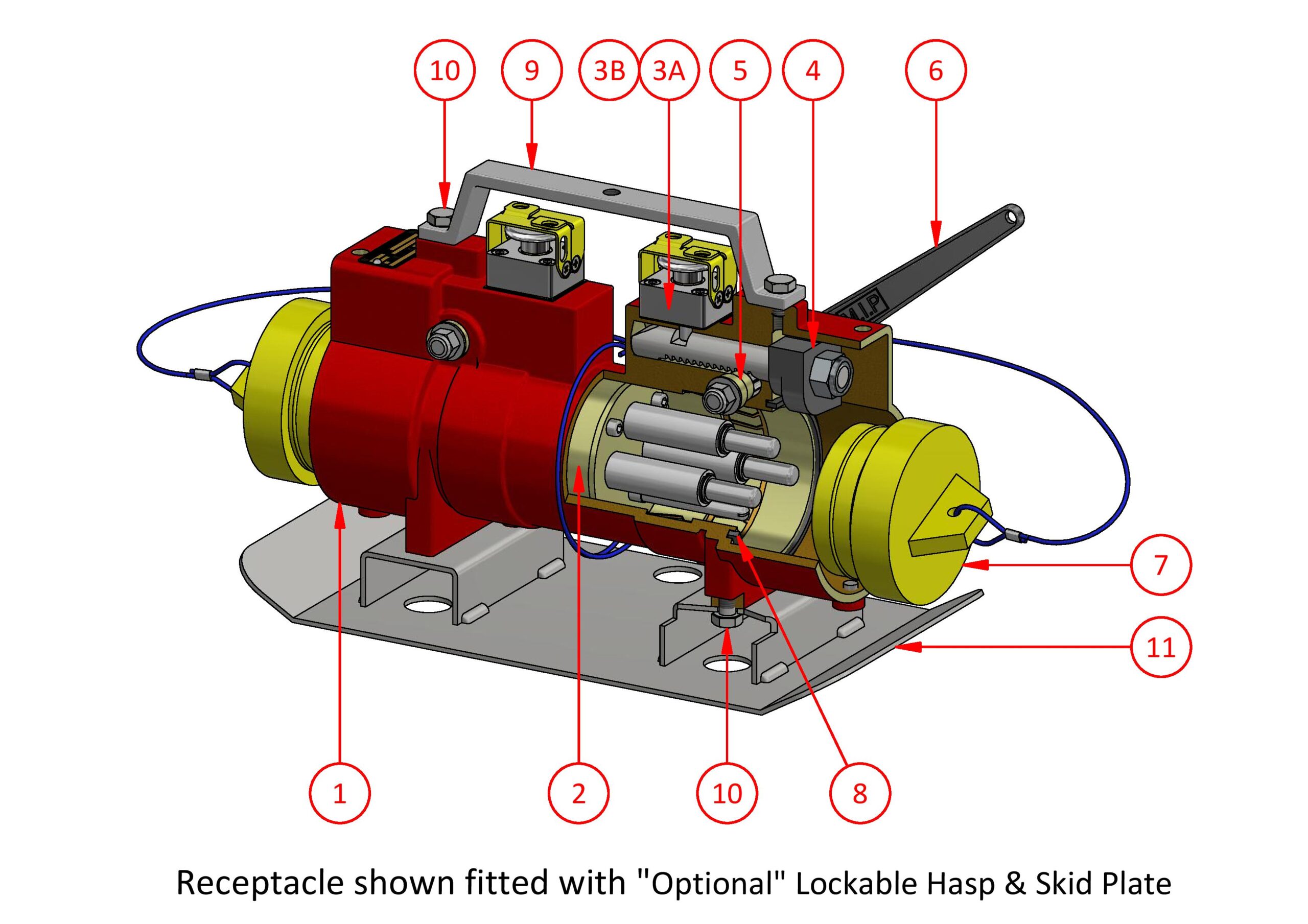

# Part Number Description
1 F-4033QR-334 1100V Back to Back Body c/w items 1, 3, 4, 5, 8, 9 & 10
2 F-4585-3 Interior c/w screws AH115112 M6 x 16 skt. head
3A F-459 Q/R Locking Mechanism c/w screws AH009860 1/4" x 1" skt. head
3B F-459L Q/R Locking Mechanism c/w Lockable Hasp & AH009860 1/4" x 1" skt. head
4 F-460 Q/R Rack
5 F-482 Q/R Pinion c/w Handle
6 4285 Q/R Handle
7 F-311 Sealing Plug
8 4401-3 Seal
9 4035 Lifting Handle
10 AH113111 Screw M10 x 16 hex. head
11 4043S Skid Plate
