| Product Details | |
|---|---|
| Weight | 6kg (no skid) 8kg (with skid) |
| Dimensions | Dimensions: L320mm W 140mm H180mm (no skid) L 370mm W 190mm L 180mm (with skid) |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Brass / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AH664B | 660V Back to Back Receptacle | Orange |
| AH614B | 1100V Back to Back Receptacle | Blue |
| AH664BS | 660V Back to Back Receptacle c/w skid | Orange |
| AH614BS | 1100V Back to Back Receptacle c/w skid | Blue |

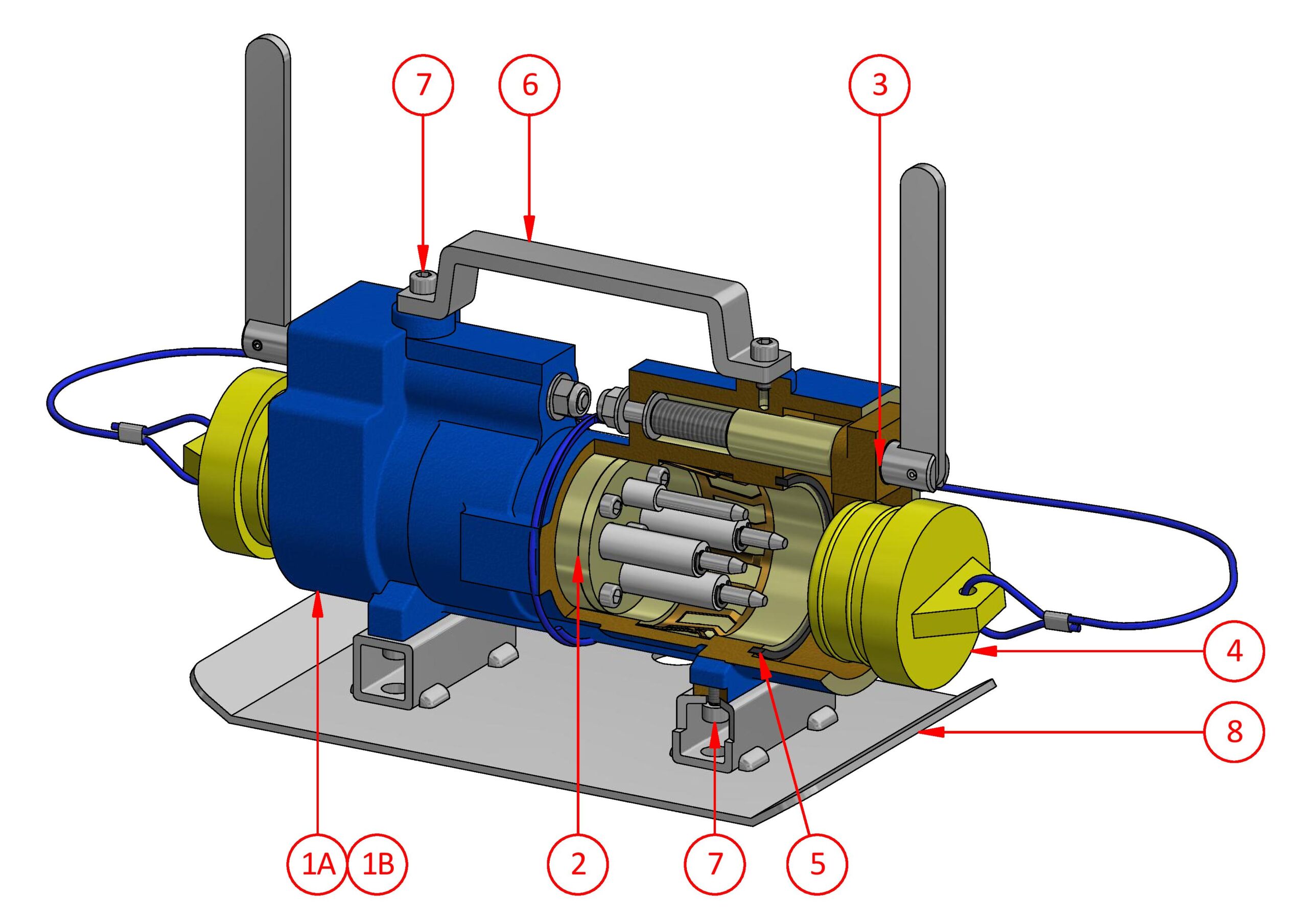

| # | Part Number | Description |
|---|---|---|
| 1A | F-4125-664 | 660V Back to Back Body c/w items 1A, 3, 5, 6 & 7 |
| 1B | F-4125-614 | 1100V Back to Back Body c/w items 1B, 3, 5, 6 & 7 |
| 2 | F-388 | Interior c/w screws AH115113 M5 x 35 skt. head |
| 3 | 3856 | Jacking Screw |
| 4 | F-309 | Sealing Plug |
| 5 | 4401-1 | Seal |
| 6 | 4131 | Lifting Handle |
| 7 | AH151036 | Screw M6 x 12 skt. head |
| 8 | 4134 | Skid Plate |
