| Product Details | |
|---|---|
| Weight | 18kg (no skid) 20kg (with skid) |
| Dimensions | L 430mm W 280mm H280mm |
| Compliance | Explosion protected to AS/NZS1299 & IEC60079 Series |
| Materials | Manganese Bronze / Brass / PTFE |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description | Colour |
|---|---|---|
| AH464B | 660V Back to Back Quick Release Receptacle | Orange/Silver |
| AH414B | 1100V Back to Back Receptacle | Blue/Silver |
| AH464BS | 660V Back to Back Receptacle c/w skid | Orange/Silver |
| AH414BS | 1100V Back to Back Receptacle c/w skid | Blue/Silver |

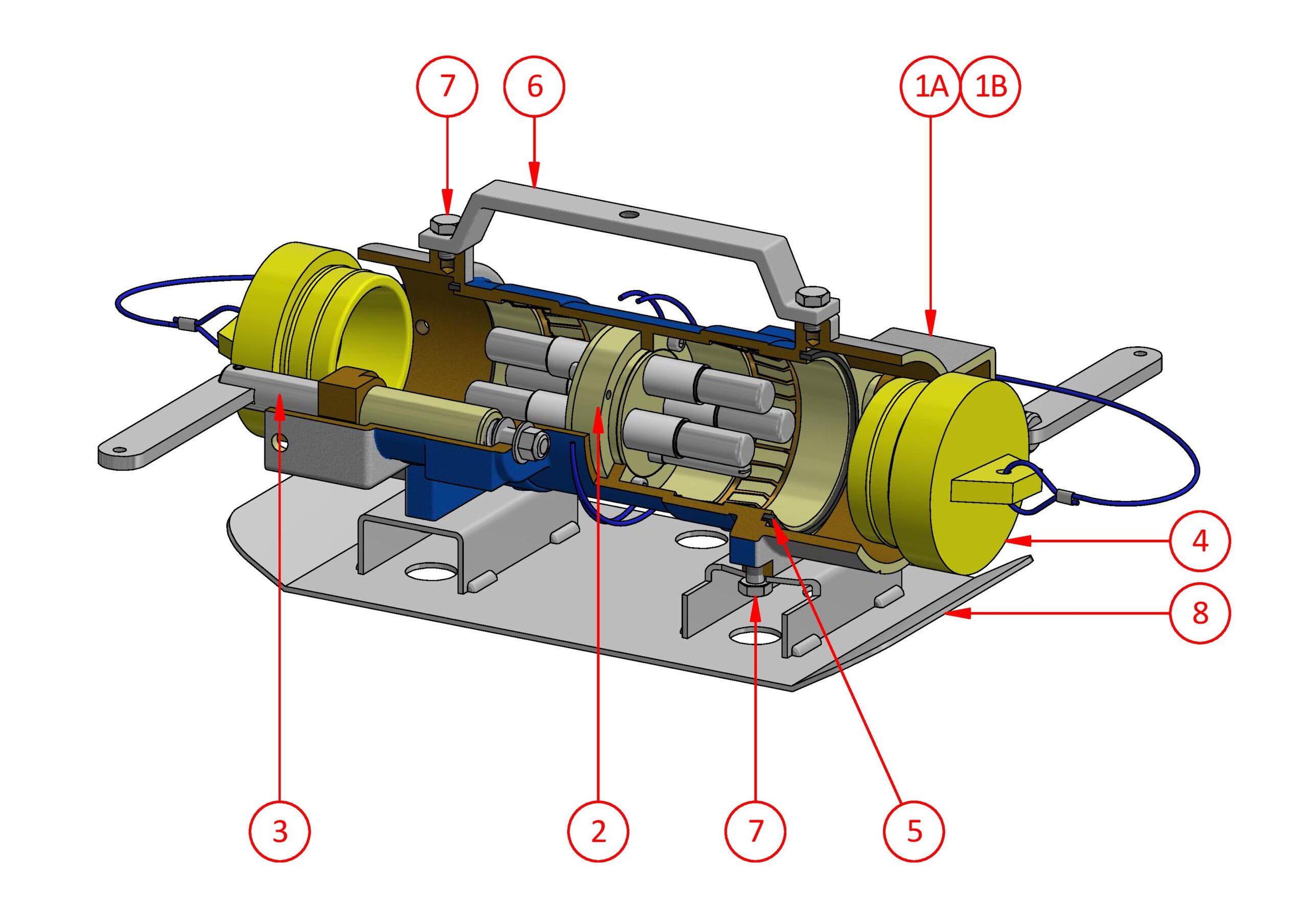

| # | Part Number | Description |
|---|---|---|
| 1A | F-4105-464 | 660V Back to Back Body c/w items 1A, 3, 5, 6 & 7 |
| 1B | F-4105-414 | 1100V Back to Back Body c/w items 1B, 3, 5, 6 & 7 |
| 2 | F-4585-2 | Interior c/w screws AH115112 M6 x 16 skt. head |
| 3 | F-329 | Jacking Screw |
| 4 | F-311 | Sealing Plug |
| 5 | 4401-3 | Seal |
| 6 | 4035 | Lifting Handle |
| 7 | AH113111 | Screw M10 x 16 hex. head |
| 8 | 4043S | Skid Plate |
