Back to Back Receptacle (660V – 3300V) – 300 Amp Series

Order Procedure

Select complete Back to Back from Table 1
Add Part No. from Table 1 & Options Table together to get Part No. required (See examples shown under the Options Table)

Product Details
Weight	18kg (no skid) 20kg (with skid)
Dimensions	L 450mm W 230mm H 300mm
Compliance	Explosion protected to AS/NZS1299 & IEC60079 Series
Materials	Manganese Bronze / Brass / PTFE
IP Rating	IP66/68

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Table 1

Part Number	Description	Colour
AH364B	660V Back to Back Receptacle	Orange
AH314B	1100V Back to Back Receptacle	Blue
AH334B	3300V Back to Back Receptacle	Red

Table 2

Table 3

Table 4

Options

Part Number	Description
S	Skid Plate

Example: AH364BS

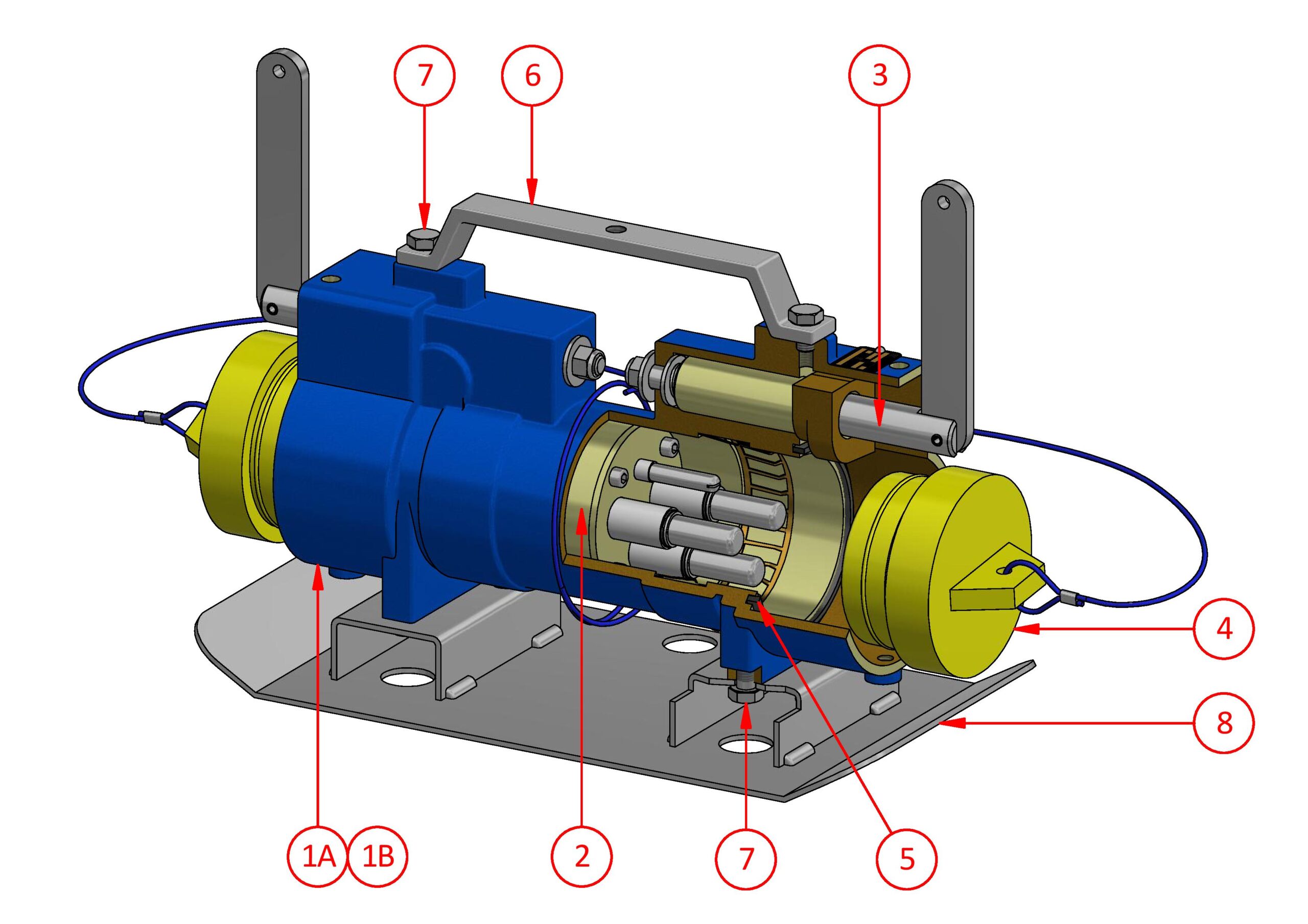

Spare Parts

#	Part Number	Description
1A	F-4033-364	660V Back to Back Body c/w items 1A, 3, 5, 6 & 7
1B	F-4033-314	1100V Back to Back Body c/w items 1B, 3, 5, 6 & 7
1C	F-4033-334	3300V Back to Back Body c/w items 1C, 3, 5, 6 & 7
2A	F-4585-1	660V - 1100V Interior c/w screws AH115112 M6 x 16 skt. head
2B	F-4585-3	3300V Interior c/w screws AH115112 M6 x 16 skt. head
3	F-329	Jacking Screw
4	F-311	Sealing Plug
5	4401-3	Seal
6	4035	Lifting Handle
7	AH113111	Screw M10 x 16 hex. head
8	4043S	Skid Plate
