Products Minto 425 Amp Series Phase Condition Indicator Plug
Weight
10kg
Dimensions
L 150mm W 150mm H 410mm
Compliance
Explosion protected to AS/NZS1299 & IEC60079 Series
Materials
Manganese Bronze / Polyester / Stainless Steel
IP Rating
IP66
Ordering Procedure
1
Select complete Phase Indicator Plug from Table 1
Table 1
| Part Number | Description | Colour |
|---|---|---|
|
AM431SLA
|
3300V Phase Condition Indicator Plug RTX | Red/Silver |
|
AT434S
|
3300V Phase Condition Indicator Plug |
Red/Silver |
|
AT434SS
|
3300V Phase Condition Indicator Plug (Stainless steel nose cone) | Red/Silver |

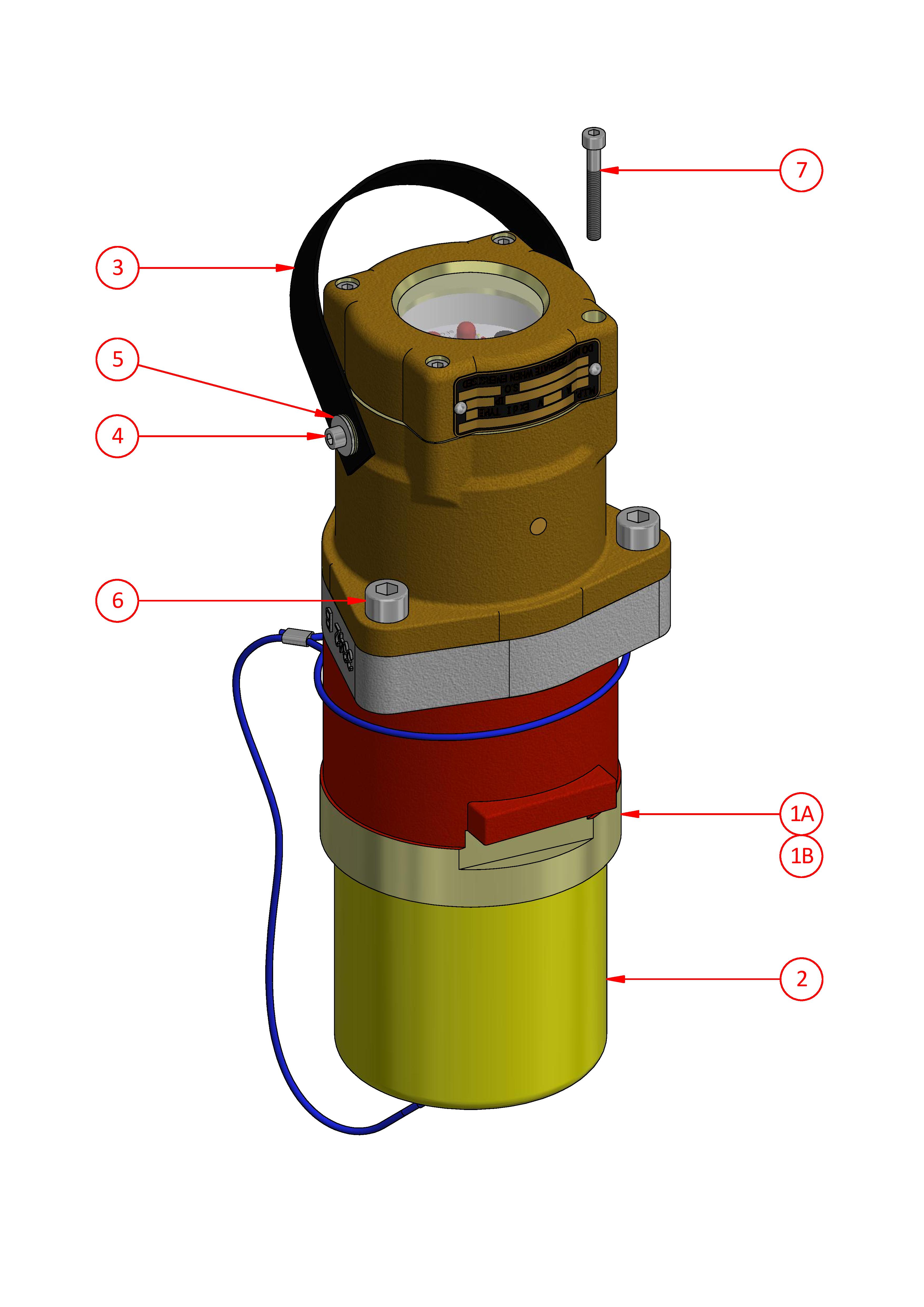

Spare Parts
| # | Part Number | Description |
|---|---|---|
| 1A |
F-3342-434
|
Nose Cone c/w items 11 & 16 |
| 1B |
F-3342-434SS
|
Nose Cone Stainless Steel c/w items 11 & 16 |
| 2 |
F-264L
|
Screw 1⁄4" × 21⁄4 skt head |
| 3 |
F-AX000400
|
Handle |
| 4 |
AH151033
|
Screw M5 x 16 skt. Head |
| 5 |
AH009251
|
Washer 3⁄16" x 5⁄8" |
| 6 |
AH117113
|
Screw M10 × 40 skt. head |
| 7 |
AH151015
|
Screw M5 x 40 skt. head |
