| Product Details | |
|---|---|
| Weight | 14kg |
| Dimensions | L 180mm W 180mm H 380mm |
| Compliance | Explosion protected to IEC60079 Series |
| Materials | Manganese Bronze |
| IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
| Part Number | Description |
|---|---|
| F-4088A | No.3 Armoured Cable Gland to suit Max. 76.0mm O.D. cable with 22.0-60.0 U.A. |
| Part Number | Cable Acceptance mm |
|---|---|
| 3054-25 | 22.0-25.0 |
| 3054-31 | 24.0-31.0 |
| 3054-35 | 30.0-35.0 |
| 3054-38 | 34.0-38.0 |
| 3054-41 | 37.0-41.0 |
| 3054-45 | 40.0-45.0 |
| 3054-47 | 44.0-47.0 |
| 3054-51 | 46.0-51.0 |
| 3054-54 | 50.0-54.0 |
| 3054-57 | 53.0-57.0 |
| 3054-60 | 56.0-60.0 |
| 3054-64 | 59.0-64.0 |
| 3054-67 | 63.0-67.0 |
| 3054-70 | 66.0-70.0 |
| 3054-73 | 69.0-73.0 |
| 3054-76 | 72.0-76.0 |

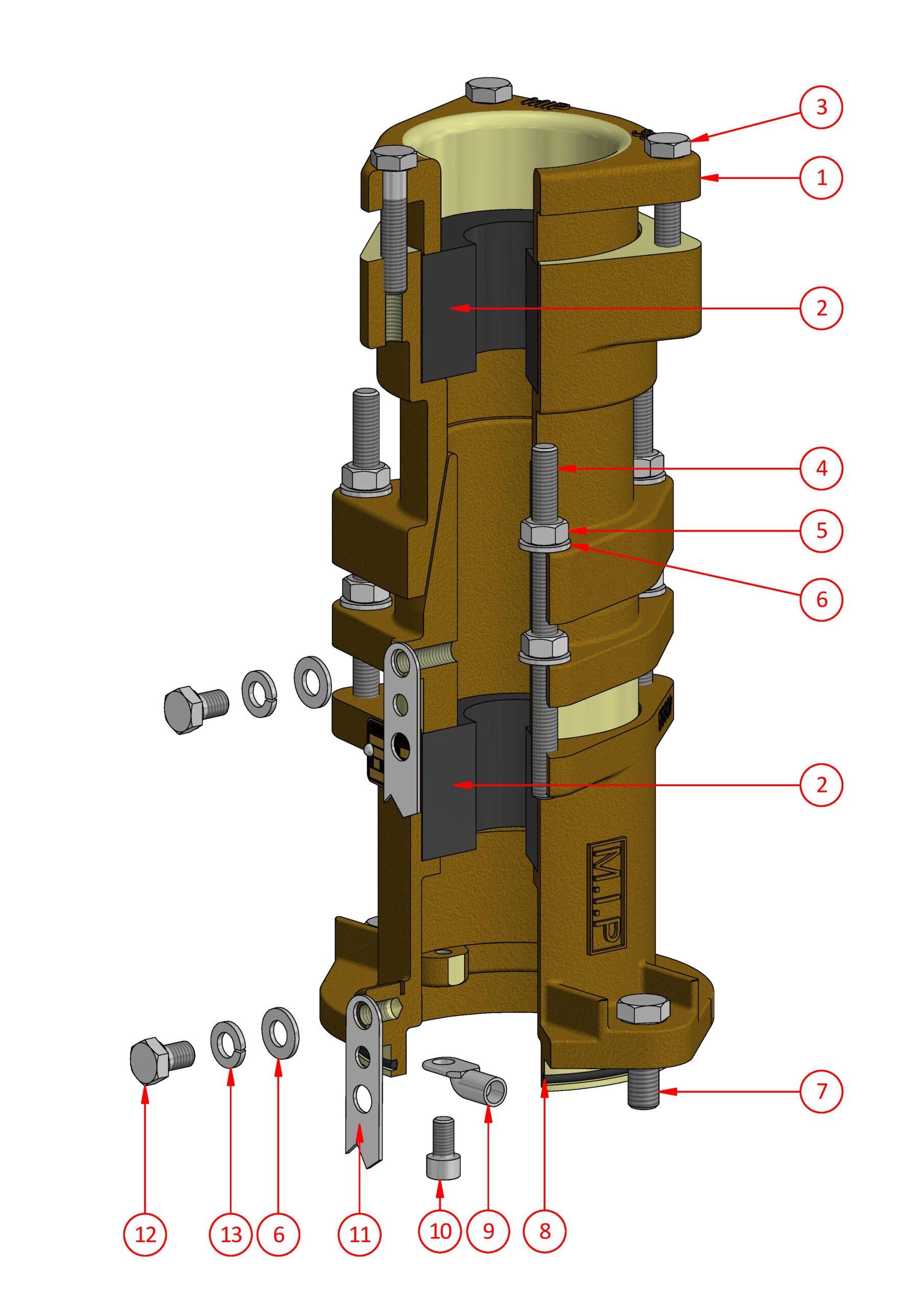

| # | Part Number | Description |
|---|---|---|
| 1 | 3576B | Clamping Cap |
| 2 | See Table 2 | Neoprene Grommet |
| 3 | AH113116S | Screw M10 x 50 hex. head |
| 4 | 3385 | Stud M10 |
| 5 | AH120011 | Nut M10 |
| 6 | AH150011 | Washer M10 |
| 7 | AH113134 | Screw M12 x 35 hex. head |
| 8 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
| 9 | AH017206 | Earth Lug |
| 10 | AH115093 | Screw M8 x 15 skt. head |
| 11 | 201-264-1 | Earth Strap |
| 12 | AH113111 | Screw M10 x 16 hex. head |
| 13 | AH151011 | Spring Washer M10 |
