Product Details | |
---|---|
Weight | 8.5kg |
Dimensions | L 200mm W 210mm H 280mm |
Compliance | Explosion protected to IEC60079 Series |
Materials | Manganese Bronze |
IP Rating | IP66/68 |
Need help choosing the right product?
Our team is here to help.
Part Number | Description |
---|---|
F-4087A | No.2 Armoured Cable Gland to suit Max. 54.0mm O.D. cable with 21.0-48.0 U.A. |
Part Number | Cable Acceptance mm |
---|---|
3137-25 | 21.0-25.0 |
3137-28 | 24.0-28.0 |
3137-32 | 27.0-32.0 |
3137-35 | 31.0-35.0 |
3137-38 | 34.0-38.0 |
3137-41 | 37.0-41.0 |
3137-44 | 40.0-44.0 |
3137-48 | 43.0-48.0 |
3137-51 | 47.0-51.0 |
3137-54 | 50.0-54.0 |

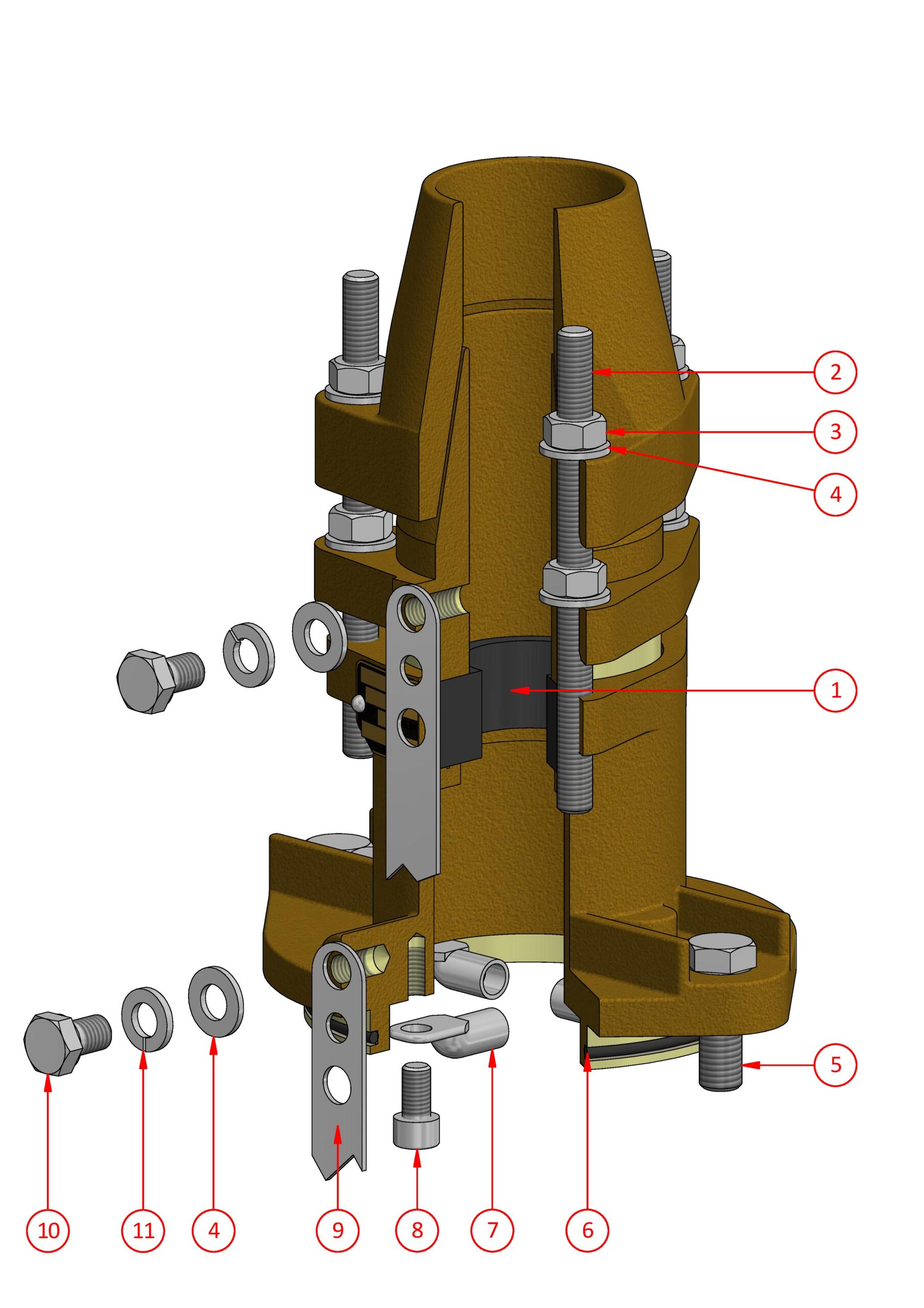

# | Part Number | Description |
---|---|---|
1 | See Table 2 | Neoprene Grommet |
2 | 3385 | Stud M10 |
3 | AH120011 | Nut M10 |
4 | AH150011 | Washer M10 |
5 | AH113134 | Screw M12 x 35 hex. head |
6 | AI019010 | O-ring ID 120.24 x sect. 3.53 |
7 | AH017206 | Earth Lug |
8 | AH115111 | Screw M8 x 12 skt. head |
9 | 201-264-1 | Earth Strap |
10 | AH113111 | Screw M10 x 16 hex. head |
11 | AH151011 | Spring Washer M10 |
