Products Minto 300 Amp Series Back to Back Receptacle Quick Release
Weight
18kg (no skid) 20kg (with skid)
Dimensions
L 450mm W 230mm H 300mm
Compliance
Explosion protected to AS/NZS1299 & IEC60079 Series
Materials
Manganese Bronze / Brass / PTFE
IP Rating
IP66/68
Ordering Procedure
1
Select complete Back to Back from Table 1
2
Add Part No. from Table 1 & Options Table together to get Part No. required (See examples shown under the Options Table)
Table 1
| Part Number | Description | Colour |
|---|---|---|
|
AH364BQR
|
660V Back to Back Receptacle Quick Release | Orange |
|
AH314BQR
|
1100V Back to Back Receptacle Quick Release | Blue |
Options
| Part Number | Description |
|---|---|
|
S
|
Skid Plate |
|
L
|
Lockable Hasp |
Examples: AH364BQRS, AH364BQRL, AH364BQRSL
Spare Parts

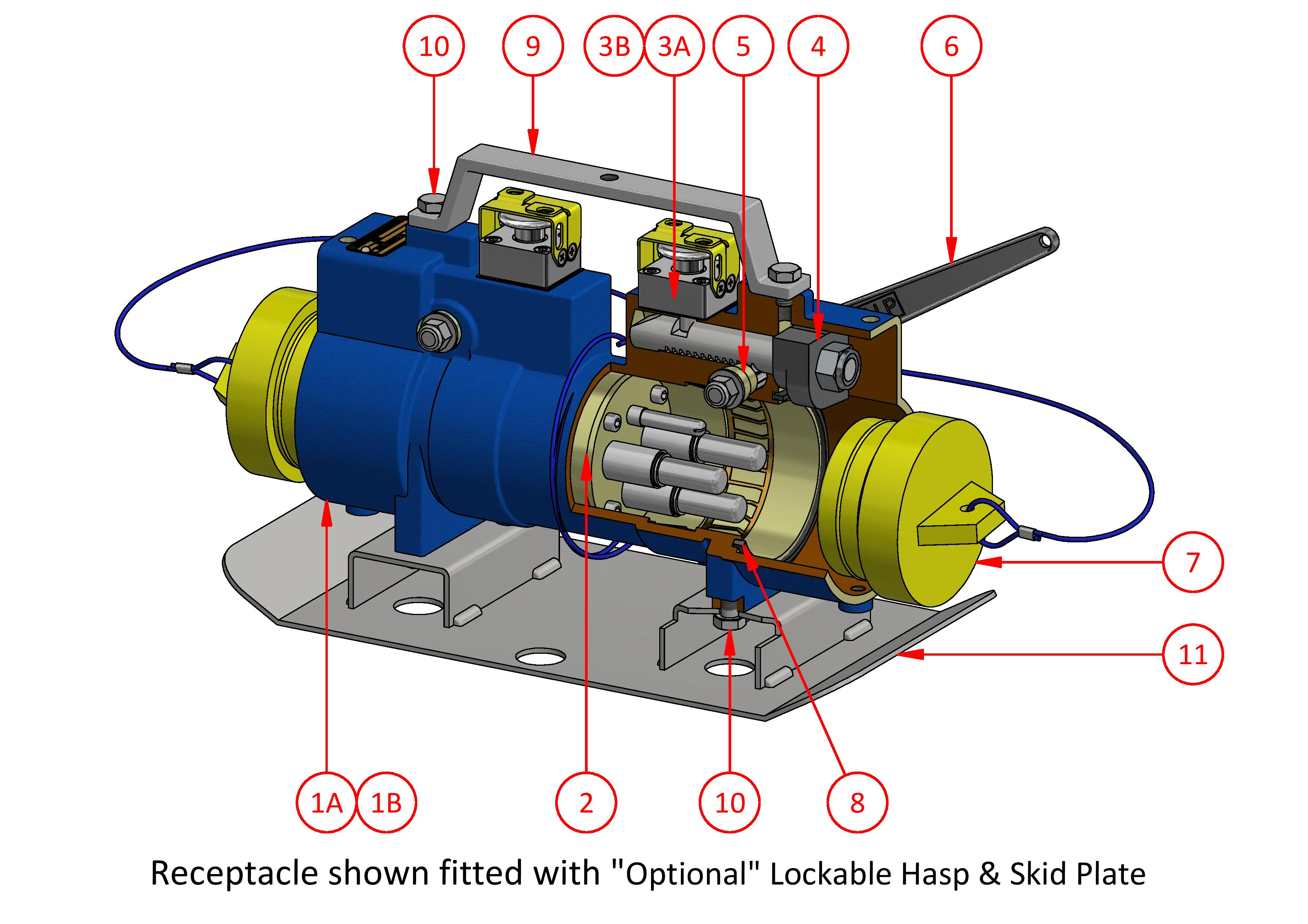

| # | Part Number | Description |
|---|---|---|
| 1A |
F-4033QR-364
|
660V QR Back to Back Body c/w items 1A, 3, 4, 5, 8, 9 & 10 |
| 1B |
F-4033QR-314
|
1100V QR Back to Back Body c/w items 1B, 3, 4, 5, 8, 9 & 10 |
| 2 |
F-4585-1
|
Interior c/w screws AH115112 M6 x 16 skt. head |
| 3A |
F-459
|
Q/R Locking Mechanism c/w screws AH009860 1/4" x 1" skt. head |
| 3B |
F-459L
|
Q/R Locking Mechanism c/w Lockable Hasp & AH009860 1/4" x 1" skt. head |
| 4 |
F-460
|
Q/R Rack |
| 5 |
F-482
|
Q/R Pinion c/w Handle |
| 6 |
4285
|
Q/R Handle |
| 7 |
F-311
|
Sealing Plug |
| 8 |
4401-3
|
Seal |
| 9 |
4035
|
Lifting Handle |
| 10 |
AH113111
|
Screw M10 x 16 hex. head |
| 11 |
4043S
|
Skid Plate |
