51 CORE TRAFFIC SIGNAL CABLE

PVC/PVC 51 CORE (48 x 1.5mm² + 3 x 4.0mm²) CABLE 0.6/1KV TO AS2276.1

0.6/1kV, CU

Download Product PDF

Need help choosing the right product?

Our team is here to help.

Cable Application

Connection of Traffic Light Signal Systems.

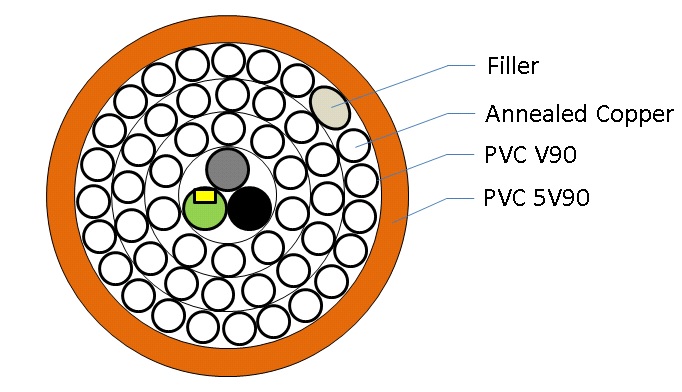

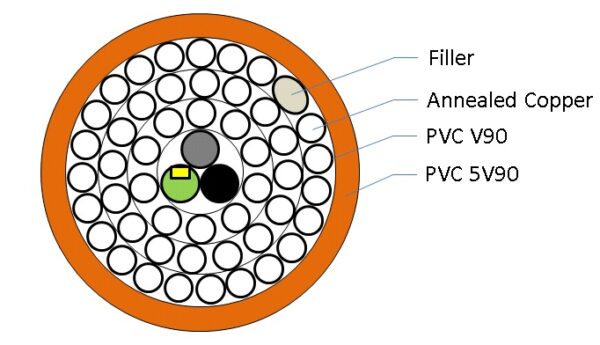

Cable Design

Conductor:

Plain annealed Copper to AS/NZS 1125

Insulation:

PVC V90 to AS/NZS 3808

Layup Construction:

Central – 3 Cores – Black, Grey, Green/Yellow
Inner – 10 Cores White with Numbers (1-10)
Mid – 16 Cores – White with Numbers (11-26)
Outer – 22 Cores White with Numbers (27-48)
Diameter of Layup 28.5mm

Sheath:

5V90 PVC to AS/NZS 3808 (Orange)

Certification:

To Qld Mains Roads requirements MRTS 256

Characteristics

	Conductor				Insulation			Sheath			Conductor resistance (Max)	Weight
Part Number	No. of Core	Nom. Area mm²	No. & Dia. of Wires No./mm	Nom. Dia. mm	Nom. Insulation Thickness mm	Min. Nom. Ins. Thickness mm	Nom. Insulation Dia. mm	Nom. Sheath Thickness mm	Min. Dia. over Ins. mm	Overall Sheath Dia.	DC at 20°C Ohm/km	Approx. Cable Weight Kg/m
TFRCC51CTRAFFIC	3 48	4.0 1.5	7/0.85 7/0.50	2.5 1.5	1.0 0.8	0.8 0.62	4.6 3.1	2.0	1.6	32.5	4.61 13.6	10.2

0.5mm²

1.5mm²

Characteristics For PVC

Characteristics For XLPE
