Connection of Traffic Light Signal Systems.
Flexible plain annealed copper to AS/NZS 1125
PVC V90 to AS/NZS 3808

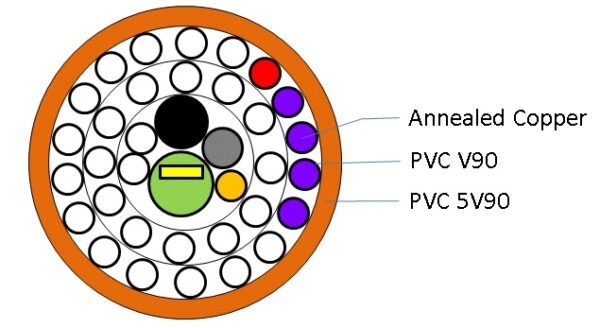

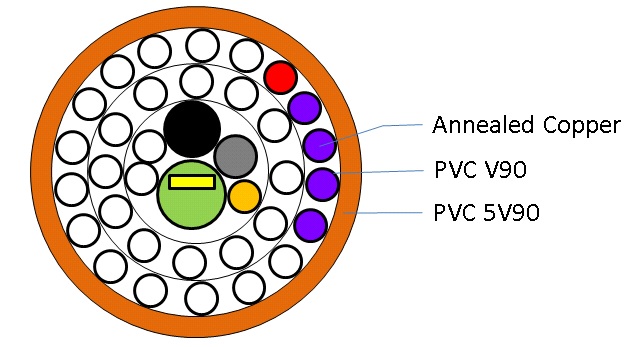

Central – 1 Core – Green/Yellow + 5 Cores – Black, Grey, Orange, White with Numbers(1-2) + filler
Mid – 12 Cores – White with Numbers (3-14)
Outer – 18 Cores White with Numbers (15-27), Violet with Numbers (P1-P4), Red
Diameter of Layup 26.3mm
5V90 PVC to AS/NZS 3808 (Orange)
To Qld Mains Roads requirement MRTS 256 Certificate No. 17-06
| Conductor | Insulation | Sheath | Conductor resistance (Max) | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | No. of Core | Nom. Area mm² | No. & Dia. of Wires No./mm | Nom. Dia. mm | Nom. Insulation Thickness mm | Min. Nom. Ins. Thickness mm | Nom. Insulation Dia. mm | Nom. Sheath Thickness mm | Min. Dia. over Ins. mm | Overall Sheath Dia. | DC at 20°C Ohm/km | Approx. Cable Weight Kg/m |
| TFRCC36TRAFFIC | 1 1 1 33 |
2.5 4.0 6.0 1.5 |
50/0.25 56/0.30 84/0.30 30/0.25 |
2.0 2.6 3.2 1.6 |
0.8 1.0 1.0 0.8 |
0.62 0.8 0.8 0.62 |
3.6 4.6 5.2 3.2 |
1.8 | 1.43 | 30.0 | 7.98 4.95 3.3 13.3 |
6.2 |
