29 CORE TRAFFIC SIGNAL CABLE

PVC/PVC 29 CORE (26 x 1.5mm² + 3 x 2.5mm²) CABLE 0.6/1KV TO AS2276.1

0.6/1kV, CU

Need help choosing the right product?

Our team is here to help.

Cable Application

Connection of Traffic Light Signal System.

Conductor:

Plain annealed Copper to AS/NZS 1125

Insulation:

PVC V90 to AS/NZS 3808

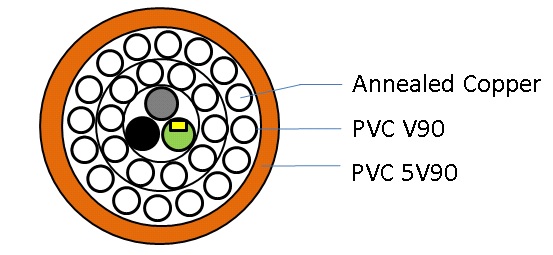

Layup Construction:

3 Cores – Grey, Black, Green/Yellow
+ 10 Cores – White Core with Numbers (1-10)
+ 16 Cores – White Core with Numbers (11-26)
Diameter of Layup 21.5mm

Sheath:

5V90 PVC to AS/NZS 3808 (Orange)

Certification:

To Qld Mains Roads requirement MRTS 256

	Conductor				Insulation			Sheath			Conductor resistance (Max)	Weight
Part Number	No. of Core	Nom. Area mm²	No. & Dia. of Wires No./mm	Nom. Dia. mm	Nom. Insulation Thickness mm	Min. Nom. Ins. Thickness mm	Nom. Insulation Dia. mm	Nom. Sheath Thickness mm	Min. Dia. over Ins. mm	Overall Sheath Dia.	DC at 20°C Ohm/km	Approx. Cable Weight Kg/m
TFRCC29CTRAFFIC	3 26	2.5 1.5	7/0.67 7/0.50	2.0 1.5	1.0 0.8	0.62 0.62	3.6 3.1	1.8	1.43	25.3	7.41 13.6	4.8
