19 CORE TRAFFIC SIGNAL CABLE

PVC/PVC 19 CORE (16 X 1.5MM² + 3 X 2.5MM²) CABLE 0.6/1KV TO AS2276.1

0.6/1kV, CU

Need help choosing the right product?

Our team is here to help.

Cable Application

Connection of Traffic Light Signal Systems.

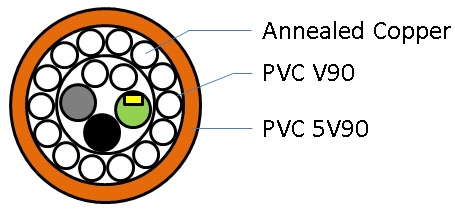

Conductor:

Plain annealed Copper to AS/NZS 1125

Insulation:

PVC V90 or XLPE to AS/NZS 3808

Layup Construction:

5 Cores – Grey, Black, Green/Yellow, White Core with Numbers (1-2)
+ 14 Cores – White Core with Numbers (3-16)
Diameter of Layup 16mm

Sheath:

5V90 PVC to AS/NZS 3808 (Orange)

Certification:

To Qld Main Roads requirement MRTS 256

	Conductor				Insulation			Sheath			Conductor resistance (Max)	Weight
Part Number	No. of Core	Nom. Area mm²	No. & Dia. of Wires No./mm	Nom. Dia. mm	Nom. Insulation Thickness mm	Min. Nom. Ins. Thickness mm	Nom. Insulation Dia. mm	Nom. Sheath Thickness mm	Min. Dia. over Ins. mm	Overall Sheath Dia.	DC at 20°C Ohm/km	Approx. Cable Weight Kg/m
TFRCC19CTRAFFIC	3 16	2.5 1.5	7/0.67 7/0.50	2.0 1.5	0.8 0.8	0.62 0.62	3.6 3.1	1.8	1.43	19.6	7.41 13.6	3.4
